Hotun White Hiflo Dry Trap Tundish 15mm x 22mm 12LPM HW100C | Genuine Replacement Spare Part
- SKU
- EDDHOTUN01

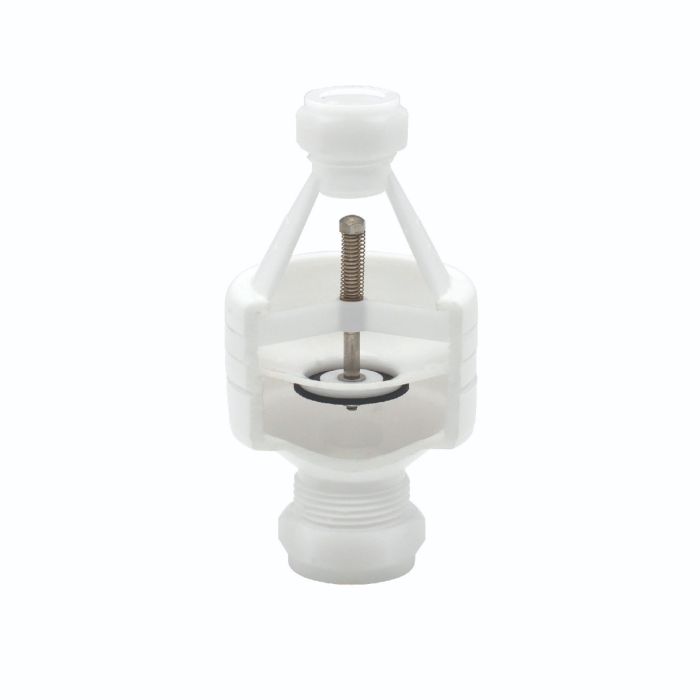

A Hotun dry trap tundish is a system that provides a safe way of system discharge from a boiler or water heater to an internal pipe. A tundish is installed to prevent cross-contamination between an overflow and a drain pipe. Unsanitary water from the drain pipe could theoretically enter the system if a tundish is not installed to block this.
- Outlet connections: 22mm Compression
- Inlet connections: Half BSP - flat faced top connector
- Rated Flow rate: 12(L/Min)
- Max Flow rate: 16(L/Min)
- Temperature Rating 120 C
- Dimensions: 104mm(H) 57mm (Diameter)
- Supplied with: 22mm Nut & Olive, rubber 'O' ring
- Suggested for Small water heaters and some boilers
| MPN | HW100C |
|---|---|
| Product Code | EDDHOTUN01 |
| Compatible With: Product Code (SKU) | Any Unvented Water Systems Without External Wall Access |
| Part Origin | Genuine |
| Part or Accessory? | Accessory |
| Brand | Hotun |
| Height (mm) | 104 |
| Width (mm) | 57 |
| Depth (mm) | 57 |
| Full Weight (kG) | .5 |
