Instanta XEF501SP PCB Display Board | Genuine Replacement Spare Part
- SKU
- EDDINSTANTASPARE89

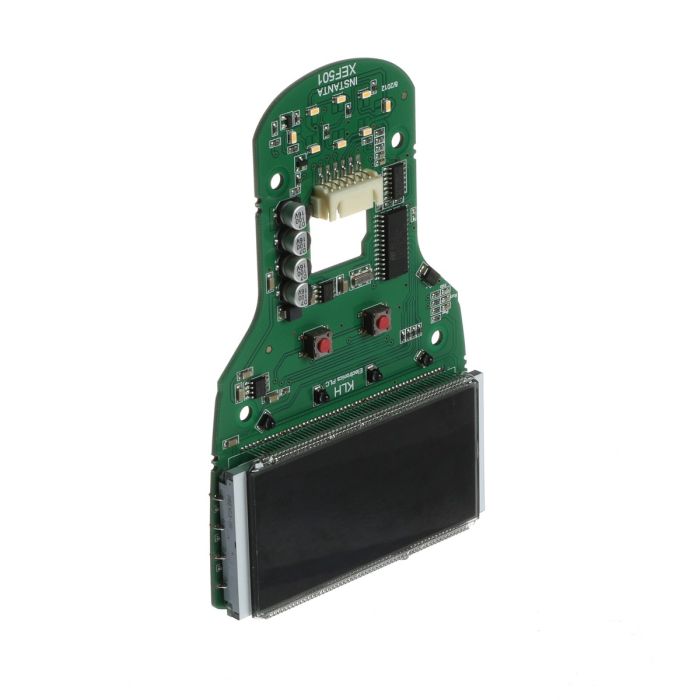

Genuine Instanta XEF501SP PCB Display Board
The Instanta XEF501SP is a genuine OEM PCB display board for Instanta commercial water boilers and boiling-water taps. Instanta describe it as a display PCB. It is supplied as an original manufacturer part, not a pattern equivalent.
What it does
This board is part of the boiler's control system. It reads the temperature and level sensors, switches the heating circuit, drives the display or push buttons, and holds the operating logic for the unit. A fault on the control side usually shows itself as a dead or unresponsive unit rather than a water leak.
Signs of a control fault
- The unit is dead, or the display does not light
- The boiler powers up but never calls for heat
- Error codes, flashing indicators or an unresponsive keypad
- Intermittent operation that clears briefly on a power cycle
- Visible scorching or discolouration on the board
Compatible models
Fits Instanta CTSP 10/11/17/19/27. Instanta also list the XEF501SP against the CTSP10, CTSP10H, CTSP17T, CTSP27T6, CTSP11H6 and CTSP19T6 SureFlow Plus counter-top boilers. Always check the part number on your existing component before ordering. If you are unsure, call us on 01934 253600 and we will confirm the right part for your model.
Fitting
This is an electrical component inside a mains-powered appliance. Isolate the boiler at the supply and allow it to cool before removing any panel. Replacement by a competent engineer or a qualified electrician is recommended. No gas or G3 qualification applies to these units.
Instanta provide a 1 year warranty on all genuine spare parts. Electrical Deals Direct stock a wide range of spare parts. If you cannot see the item you require on our website, please call on 01934 253600 for more information.
| MPN | XEF501SP |
|---|---|
| Product Code | EDDINSTANTASPARE89 |
| Compatible With: Product Code (SKU) | CTSP 10/11/17/19/27 |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Instanta |
