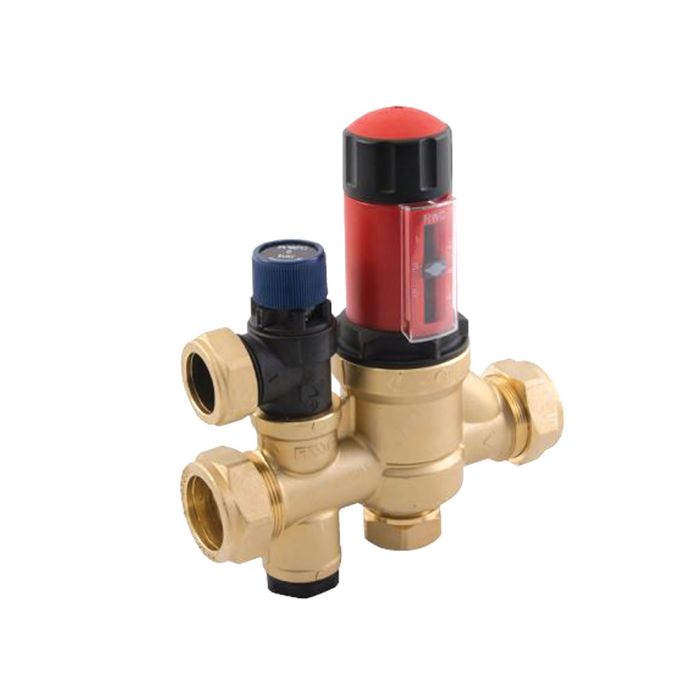

Reliance CWIC352300 RWC 3.5/6 Bar Compact Inlet Control Group 28mm | Genuine Replacement Spare Part
- SKU
- EDDRELIANCE70
Genuine Reliance CWIC352300 28mm One Piece Inlet Control Valve 3.5/6 Bar
High flow 28mm one piece inlet control valve for larger domestic and commercial unvented systems, reducing to 3.5 bar with a 6 bar expansion relief.
What it does
The inlet control group is the first set of controls on an unvented cylinder's cold mains supply. It reduces the incoming pressure to the cylinder's working pressure, stops water flowing back into the mains, and relieves excess expansion pressure.
Where it fits
Cold water inlet of unvented hot water storage cylinders - reduces mains pressure, prevents backflow and relieves expansion pressure.
Specification
- One piece body to minimise leak potential
- Connections 28mm compression
- Pressure reduction 3.5 bar
- Expansion relief 6 bar
- Maximum inlet pressure 25 bar
- Maximum temperature 70 C
- Pressure reduction ratio 10:1
- Single check valve, backflow protection to category 2
- Integral strainer
- Expansion vessel and balanced cold water take off connections
- WRAS approved
Installation
G3 qualified installation required (Building Regulations Part G, unvented hot water storage). A genuine Reliance part for a reliable, like-for-like replacement. In stock at Electrical Deals Direct.
| MPN | CWIC352300 |
|---|---|
| Product Code | EDDRELIANCE70 |
| Compatible With: Product Code (SKU) | Cold water inlet of unvented hot water storage cylinders; reduces mains pressure, prevents backflow and relieves expansion pressure |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Reliance |
| Empty Weight (kG) | 1 |
| Full Weight (kG) | 1 |
