Reliance CWIC355065 RWC 3/8 Bar Compact Inlet Control Group | Genuine Replacement Spare Part
- SKU
- EDDRELIANCE75

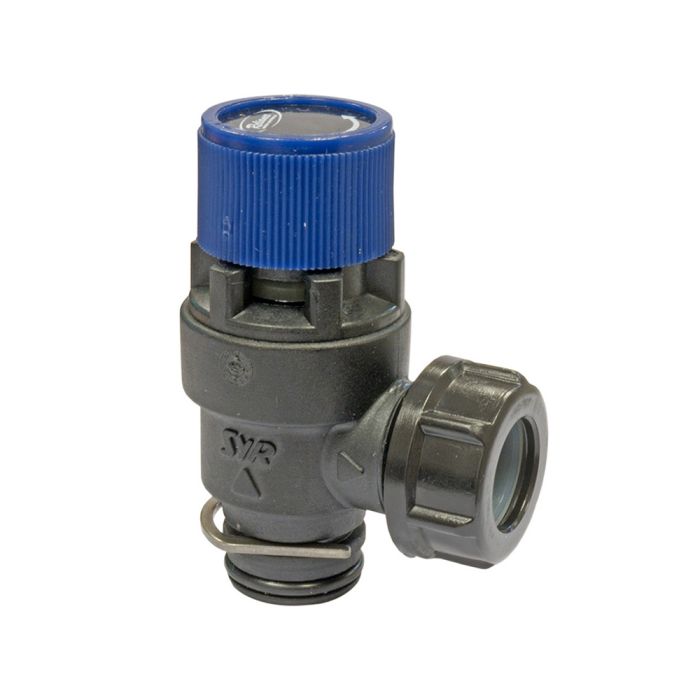

Genuine Reliance CWIC355065 22mm Compact Inlet Control Valve 3/8 Bar
22mm compact one piece inlet control valve with a droptight 3 bar pressure reducer and a rotating 8 bar expansion relief valve.
What it does
The inlet control group is the first set of controls on an unvented cylinder's cold mains supply. It reduces the incoming pressure to the cylinder's working pressure, stops water flowing back into the mains, and relieves excess expansion pressure.
Where it fits
Cold water inlet of unvented hot water storage cylinders - reduces mains pressure, prevents backflow and relieves expansion pressure.
Specification
- Pressure reduction 3 bar
- Expansion relief 8 bar
- Connections 22mm
- Balanced cold water take off
- Dedicated expansion vessel connection
- Single check valve, backflow protection to fluid category 2
- Integral strainer
- Rotating expansion relief valve
- Maximum working pressure 16 bar
- Maximum temperature 45 C
- Pressure reduction ratio 10:1 max
- BS EN 1567, BS EN 1491, EN 13959
- WRAS approved
Installation
G3 qualified installation required (Building Regulations Part G, unvented hot water storage). A genuine Reliance part for a reliable, like-for-like replacement. In stock at Electrical Deals Direct.
| MPN | CWIC355065 |
|---|---|
| Product Code | EDDRELIANCE75 |
| Compatible With: Product Code (SKU) | Cold water inlet of unvented hot water storage cylinders; reduces mains pressure, prevents backflow and relieves expansion pressure |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Reliance |
| Empty Weight (kG) | 1 |
| Full Weight (kG) | 1 |
