Reliance HEAT110505 RWC Anti-Tamper 22mm Heatguard Tempering Valve | Genuine Replacement Spare Part
- SKU
- EDDRELIANCE93

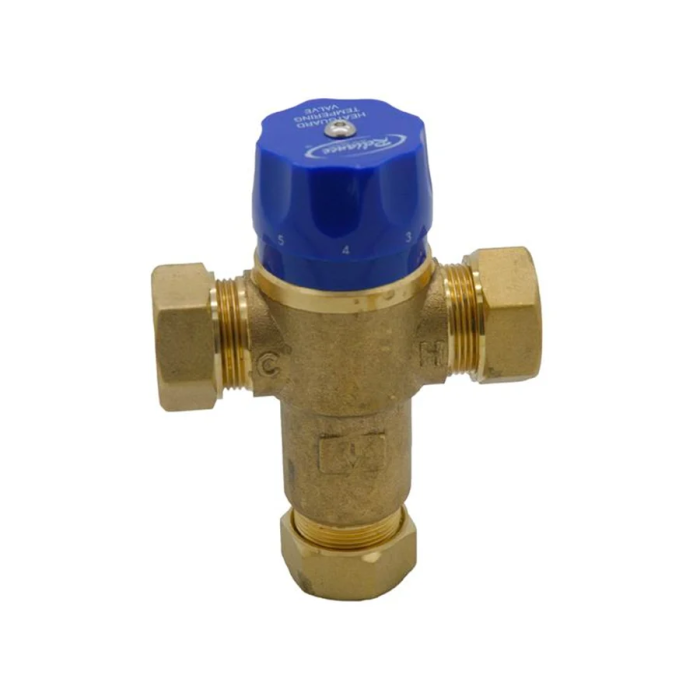

Genuine Reliance HEAT110505 22mm Heatguard Tempering Valve
Heatguard tempering valve with 22mm compression connections, pre-set and locked at 55 C behind a tamperproof cap.
What it does
A tempering valve takes hot water from the cylinder and cold water from the supply and mixes them to a stable circulating temperature, so the water leaving the system cannot reach scalding temperatures.
Where it fits
Hot water distribution from a hot water cylinder - tempers the supply to a safe, stable circulating temperature.
Specification
- Pre-set and locked at 55 C
- Adjustment range 35 to 70 C
- Connections 22mm compression
- Maximum water temperature 99 C
- Maximum pressure 16 bar
- Minimum working pressure 0.2 bar
- Minimum flow rate 4 l/min
- Tamperproof cap
- WRAS approved
Installation
Installation by a qualified plumber is recommended. A genuine Reliance part for a reliable, like-for-like replacement. In stock at Electrical Deals Direct.
| MPN | HEAT110505 |
|---|---|
| Product Code | EDDRELIANCE93 |
| Compatible With: Product Code (SKU) | Hot water distribution from a hot water cylinder; tempers the supply to a safe, stable circulating temperature |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Reliance |
| Empty Weight (kG) | 0.5 |
| Full Weight (kG) | 0.5 |
