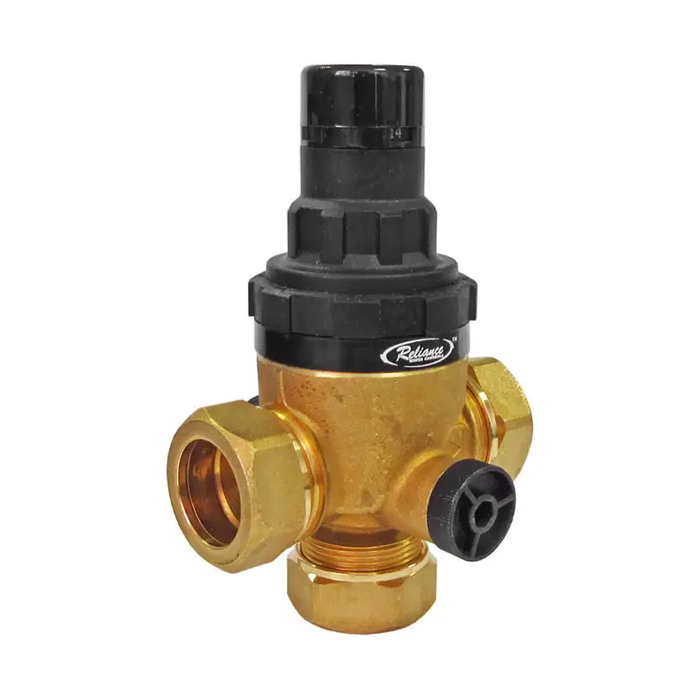

Reliance PRED330005 Cold Water Inlet Valve 3 Bar 3 Port (New Type) | Genuine Replacement Spare Part
- SKU
- EDDRELIANCE77
Genuine Reliance PRED330005 22mm Pressure Reducing Valve 3 Bar with Cold Take Off
22mm three port pressure reducing valve, pre-set and locked at 3 bar, with a balanced cold water take off. Droptight, with an integral strainer and one piece cartridge.
What it does
A pressure reducing valve sets the incoming mains pressure to the level the cylinder is designed for and holds it steady, under flow and no flow conditions.
Where it fits
Cold water inlet of unvented hot water cylinders - reduces and holds the incoming mains pressure at a fixed set point.
Specification
- Pre-set and locked at 3 bar
- Connections 22mm compression
- Balanced cold water take off
- Maximum working pressure 16 bar
- Pressure reduction ratio 10:1 max
- Integral strainer, one piece cartridge
- Can be fitted in any orientation
- DZR brass body
- BS EN 1567
- WRAS approved
Installation
G3 qualified installation required (Building Regulations Part G, unvented hot water storage). A genuine Reliance part for a reliable, like-for-like replacement. In stock at Electrical Deals Direct.
| MPN | PRED330005 |
|---|---|
| Product Code | EDDRELIANCE77 |
| Compatible With: Product Code (SKU) | Cold water inlet of unvented hot water cylinders; reduces and holds the incoming mains pressure at a fixed set point |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Reliance |
| Empty Weight (kG) | 0.5 |
| Full Weight (kG) | 0.5 |
