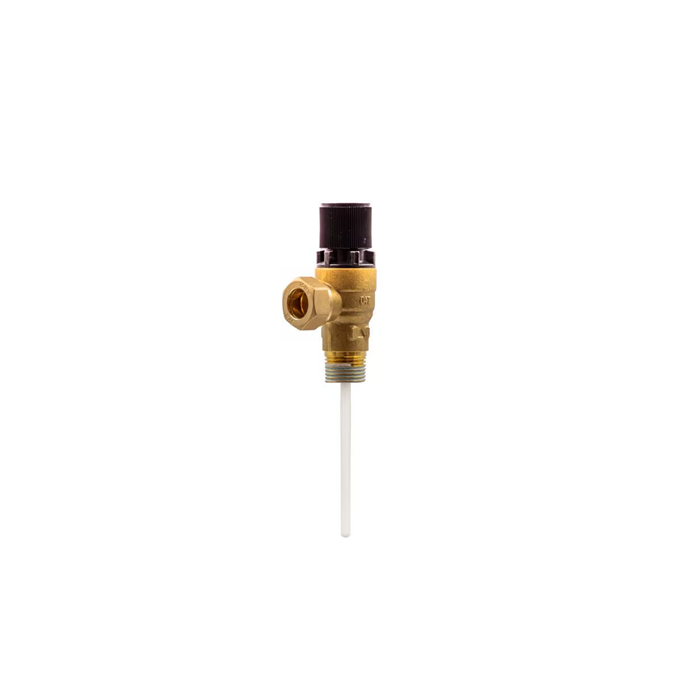

Reliance PTEM585210 TPR Valve 3/4MBSP x 22mm 10 Bar CPT22 95mm - Genuine Replacement Part
- SKU
- EDDRELIANCE42
Need something else?
Can’t find what you’re looking for? Click here to use our spare part finder.Reliance PTEM585210 TPR Valve 3/4MBSP x 22mm 10 Bar CPT22 95mm - Genuine Replacement Part
The Reliance PTEM585210 temperature and pressure relief (TPR) valve is designed for use in unvented hot water systems, providing critical safety protection by relieving excess temperature and pressure within the cylinder. Featuring a 3/4" male BSP inlet and 22mm compression outlet, along with a 95mm probe, this valve is factory set to operate at 10 bar and is constructed with a durable brass body for long-term reliability.
TPR valves are essential safety components that automatically discharge water when system temperature or pressure exceeds safe limits, helping prevent damage to the cylinder and reducing the risk of hazardous failure. The integrated temperature probe responds to rising water temperatures (typically around 90–95°C), while the pressure mechanism ensures excess pressure is safely released. Over time, valves may degrade due to scale build-up, wear, or repeated operation, which can lead to leaks or unreliable performance. Replacing a faulty valve restores system safety, ensures compliance with regulations, and maintains proper operation. Installation must always be carried out by a suitably qualified professional in accordance with current regulations.
Key Features & Benefits
- Genuine Reliance Water Controls TPR valve
- 3/4" BSP male inlet x 22mm compression outlet
- Factory set to 10 bar pressure relief
- 95mm temperature probe for accurate sensing
- Brass body for durability and corrosion resistance
- Protects unvented cylinders from overpressure and overheating
- Suitable for hot water storage systems
- Designed for safe and compliant operation
Technical Specifications
|
Specification |
Detail |
|
Part Number |
PTEM585210 |
|
Brand |
Reliance Water Controls |
|
Component Type |
Temperature & Pressure Relief Valve |
|
Pressure Rating |
10 Bar |
|
Connections |
3/4" BSP Male x 22mm Compression |
|
Probe Length |
95mm |
|
Material |
Brass |
|
Application |
Unvented Hot Water Systems |
Electrical Deals Direct now sells a wide range of spare parts. If you cannot see the item you require on our website, please call 01934 253600 or email [email protected] for more information.
| MPN | PTEM585210 |
|---|---|
| Product Code | EDDRELIANCE42 |
| Compatible With: Product Code (SKU) | Unvented hot water storage cylinders and sealed heating systems; the temperature and pressure relief valve required under Building Regulations Part G (G3) |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Reliance |
| Full Weight (kG) | .5 |
