Tesla 32040-XRTST 6kW Titanium Immersion Heater 1 3/4" Thread | Genuine Replacement Spare Part
- SKU
- EDDTESLA58

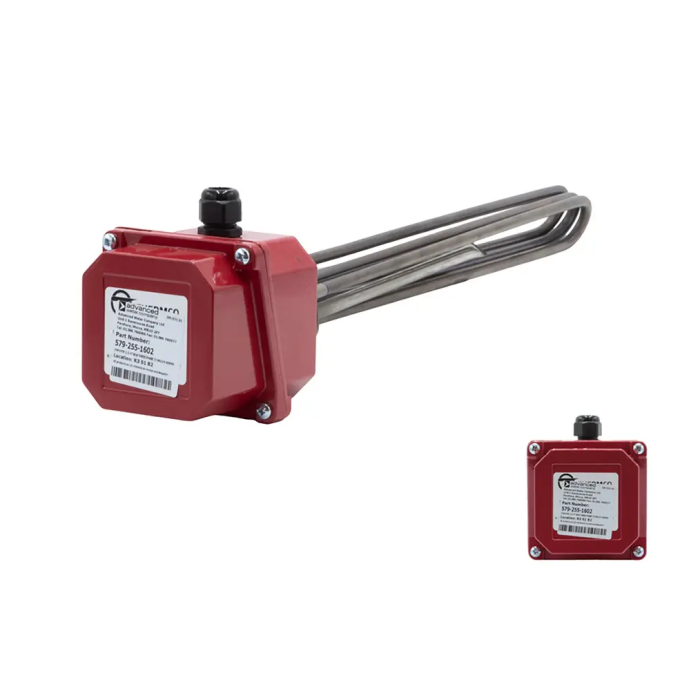

Genuine Tesla 32040-XRTST 6kW Titanium Immersion Heater
Genuine Tesla 32040-XRTST 6kw titanium immersion heater. Commercial hot water cylinders and calorifiers with a 1 3/4" immersion boss taking a 6kW element; titanium suits hard and aggressive water.
What it does
An immersion heater is the electric element that heats the stored water in a cylinder, either as the only heat source in a direct cylinder or as the back-up in an indirect one. Two things decide whether a replacement fits: the immersed LENGTH, which must suit the cylinder, and the BOSS THREAD it screws into. The sheath material decides how long it lasts - Incoloy resists the scale and pitting that kill a copper element in a hard water area, and titanium goes further still. No hot water from the immersion while the boiler side still works, or an RCD that trips when the immersion is switched on, usually means the element has failed.
Where it fits
Commercial hot water cylinders and calorifiers with a 1 3/4" immersion boss taking a 6kW element; titanium suits hard and aggressive water.
Specification
- Tesla part number 32040-XRTST
- 6kW
- Titanium sheath
- 1 3/4" BSP thread (X in the code)
- Twin thermostats
- IP65 rated cover
- Single or three phase
- Control range 5 C to 80 C
- Safety limit adjustable 46 C to 96 C
Installation
Isolate the electrical supply and drain the cylinder below the immersion boss before removing an element; G3 qualified installation is required where the cylinder is unvented (Building Regulations Part G).
| MPN | 32040-XRTST |
|---|---|
| Product Code | EDDTESLA58 |
| Compatible With: Product Code (SKU) | Commercial hot water cylinders and calorifiers with a 1 3/4" immersion boss taking a 6kW element; titanium suits hard and aggressive water. |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Tesla |
