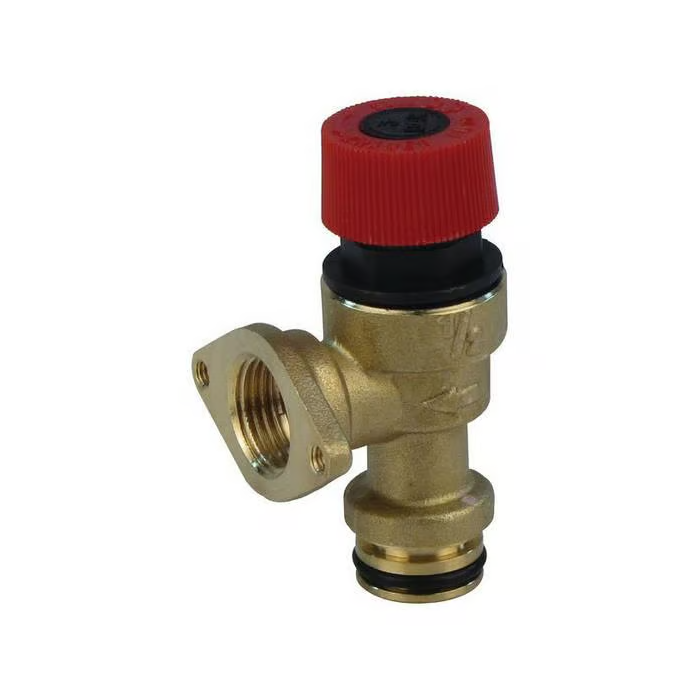

Alpha 1.023565 Pressure Relief Valve | Replacement Spare Part
- SKU
- EDDALPHA08
Compatible replacement for Alpha 1.023565 3 Bar Pressure Relief Valve
Compatible replacement for the Alpha 1.023565 3 bar pressure relief valve, for Alpha CD and HE gas boilers.
What it does
The pressure relief valve protects the sealed heating circuit. If system pressure rises past 3 bar it opens and discharges water to the outside discharge pipe, protecting the boiler, pipework and radiators.
Signs it needs replacing
A valve that drips or discharges at normal pressure, or a system that keeps losing pressure with no visible leak, often points to a failed relief valve. Check the expansion vessel charge too, as a flat vessel can make a healthy valve lift.
Where it fits
Alpha CD12S, CD20S & CD28S; CD25C, CD25X, CD28C, CD28X & CD35C; HE25 & HE33, including LPG versions.
GC numbers: CD12S 41-532-16, CD20S 41-532-18, CD28S 41-532-20, CD25C 47-532-31, CD25X 47-532-39, CD28C 47-532-33, CD28X 47-532-37, CD35C 47-532-35, HE25 47-532-41, HE25 LPG 47-532-42, HE33 47-532-43, HE33 LPG 47-532-44.
Specification
- Replaces Alpha part number 1.023565
- Set pressure 3 bar
- Pressure relief valve
Installation
Gas Safe registered engineer required. Isolate the gas and electrical supplies before any work. In stock at Electrical Deals Direct.
| MPN | 1.023565 |
|---|---|
| Product Code | EDDALPHA08 |
| Compatible With: Product Code (SKU) | Alpha CD12S, CD20S & CD28S; CD25C, CD25X, CD28C, CD28X & CD35C; HE25 & HE33, including LPG versions. |
| Part Origin | Compatible |
| Part or Accessory? | Part |
| Brand | Alpha |
| Empty Weight (kG) | 0.5 |
| Full Weight (kG) | 0.5 |
