Altecnic 309570CST 7 Bar T&P Relief Valve 3/4" x 22mm | Genuine Replacement Spare Part
- SKU
- EDDALTECNIC10

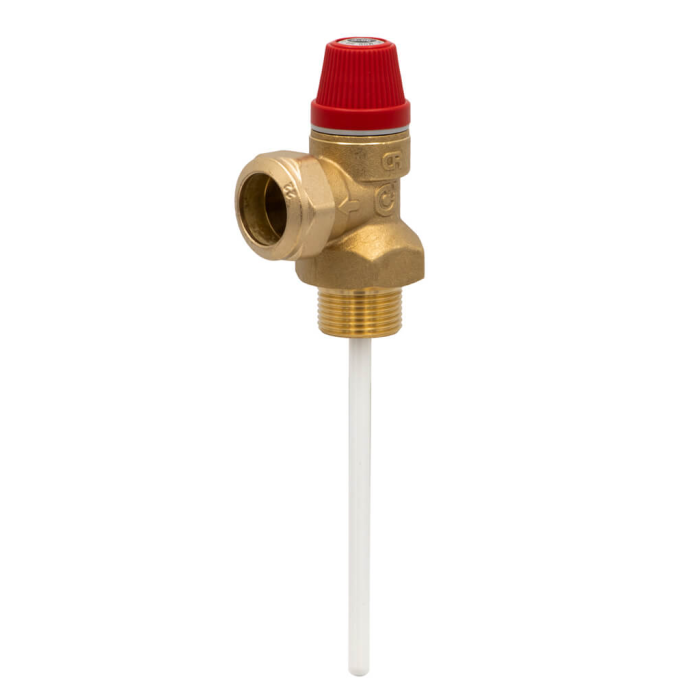

Genuine Altecnic 309570CST 7 Bar T&P Relief Valve 3/4" x 22mm
Factory set to 7 bar and 90 C with a 99mm probe and a 25 kW discharge rating.
Where it fits
Unvented hot water storage cylinders and domestic hot water storage heaters - the temperature and pressure relief valve limits stored water to its set temperature and pressure - 7 bar, 90 C, 25 kW discharge.
Replaces the 7 bar 3/4" x 22mm CPT22 and TPR22 relief valves.
Specification
- Series 309
- Set pressure 7 bar
- Set temperature 90 C
- Probe length 99mm
- Discharge rating 25 kW
- Connections 3/4" M BSP x 22mm compression
- Max working pressure 10 bar
- PED category IV
- WRAS approved
- Certified to EN 1490
Installation
G3 qualified installation required (Building Regulations Part G, unvented hot water storage). As a genuine Altecnic part it is built to the original Caleffi specification for a reliable, like-for-like replacement. In stock at Electrical Deals Direct.
| MPN | 309570 CST |
|---|---|
| Product Code | EDDALTECNIC10 |
| Compatible With: Product Code (SKU) | Unvented hot water storage cylinders and domestic hot water storage heaters; the temperature and pressure relief valve limits stored water to its set temperature and pressure; 7 bar, 90 C, 25 kW discharge |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Altecnic |
