Cimm ACS CE 24 Potable Expansion Vessel 24L 3/4" MBSP with Bracket | Genuine Replacement Spare Part
- SKU
- EDDCIMM05

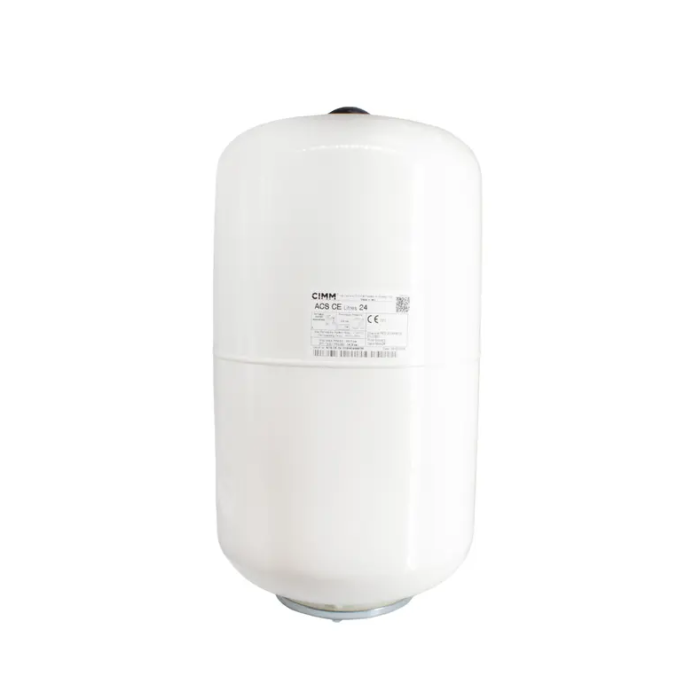

Genuine Cimm ACS CE 24 24 Litre Expansion Vessel
Genuine Cimm ACS CE 24 24 litre expansion vessel for potable (sanitary) hot and cold water systems, with a 3/4" BSP male connection and a 2.5 bar factory pre-charge. Supplied with a mounting bracket.
What it does
Water expands as it is heated. In a sealed potable system that expansion has nowhere to go, so pressure climbs until the relief valve discharges and the system loses water. The vessel holds a cushion of air behind a membrane that takes up the extra volume and keeps pressure steady. The ACS membrane is made to DIN 4807, is interchangeable rather than fixed, and is separated from the tank wall by a polypropylene cover approved for sanitary use, so the stored water never touches bare steel.
Where it fits
Potable hot and cold water systems, unvented hot water cylinders and pressurisation sets; absorbs the expansion of the system water so pressure stays within limits; 24 litre, 3/4" BSP male connection, 2.5 bar pre-charge, 10.0 bar maximum.
Specification
- Cimm model ACS CE 24, order code 512442/01
- Capacity 24 litres
- Dimensions 262mm diameter x 515mm high
- Connection M 3/4" Gas
- Factory pre-charge 2.5 bar
- Maximum working pressure 10.0 bar
- Working temperature -10 to +70 C
- Interchangeable, to DIN 4807 membrane
- Epoxy powder coated, grey
- PED 2014/68/UE; DIN EN 13831; WRAS; ACS
- Mounting bracket included
Installation
G3 qualified installation required where the vessel serves an unvented hot water system (Building Regulations Part G).
| MPN | ACS CE 24 B |
|---|---|
| Product Code | EDDCIMM05 |
| Compatible With: Product Code (SKU) | Potable hot and cold water systems, unvented hot water cylinders and pressurisation sets; absorbs the expansion of the system water so pressure stays within limits; 24 litre, 3/4" BSP male connection, 2.5 bar pre-charge, 10.0 bar maximum. |
| Part Origin | Genuine |
| Part or Accessory? | Accessory |
| Brand | Cimm Vessels |
