Cotherm HRP0197 TSE Thermostat | Genuine Replacement Spare Part
- SKU
- EDDCOTHERM12

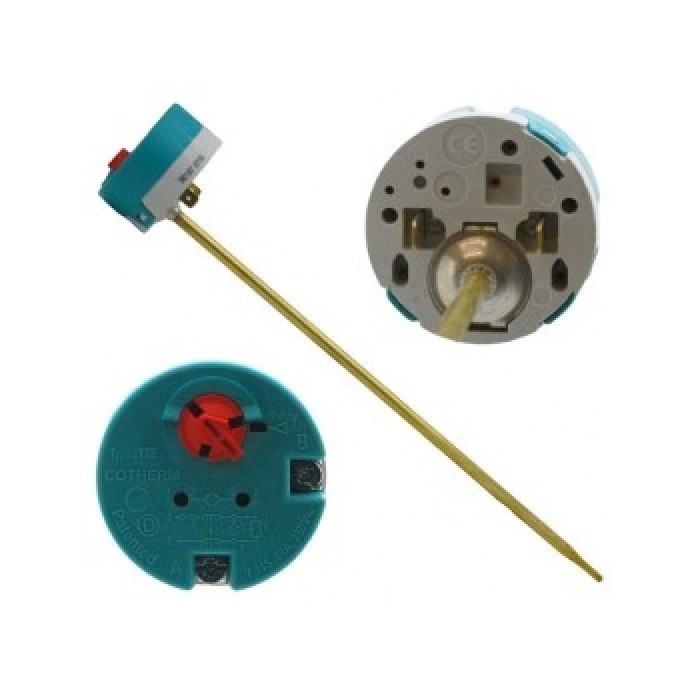

Genuine Cotherm HRP0197 TSE Dual Function Rod Thermostat
Genuine Cotherm HRP0197 plug-in rod thermostat. Immersion heaters and hot water cylinders taking a Cotherm TSE plug-in rod thermostat.
What it does
A plug-in rod thermostat does two jobs in one body: it holds the stored water at the set temperature, and it carries a safety limiter that cuts the supply if the control side sticks. The stem pushes into the pocket in the immersion heater head, so it reads the water rather than the air around the boss. Cotherm's TSE and TSR differ in how the safety side works, which is why the two are not interchangeable on every appliance: the TSE trips on a double pole bimetallic limiter in the head, while the TSR uses a memory spring down in the invar stem so it senses the water itself. Water that runs scalding, or an immersion that will not heat at all, usually means the stat rather than the element.
Where it fits
Immersion heaters and hot water cylinders taking a Cotherm TSE plug-in rod thermostat.
Specification
- HRP order code HRP0197
- Combined temperature control and safety limiter
- Safety cut-off by double pole bimetallic limiter
- Plugs onto a compatible Cotherm immersion heater head
Installation
Wiring is work for a qualified electrician; isolate before removing the thermostat head.
| MPN | HRP0197 |
|---|---|
| Product Code | EDDCOTHERM12 |
| Compatible With: Product Code (SKU) | Immersion heaters and hot water cylinders taking a Cotherm TSE plug-in rod thermostat. |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Cotherm |
