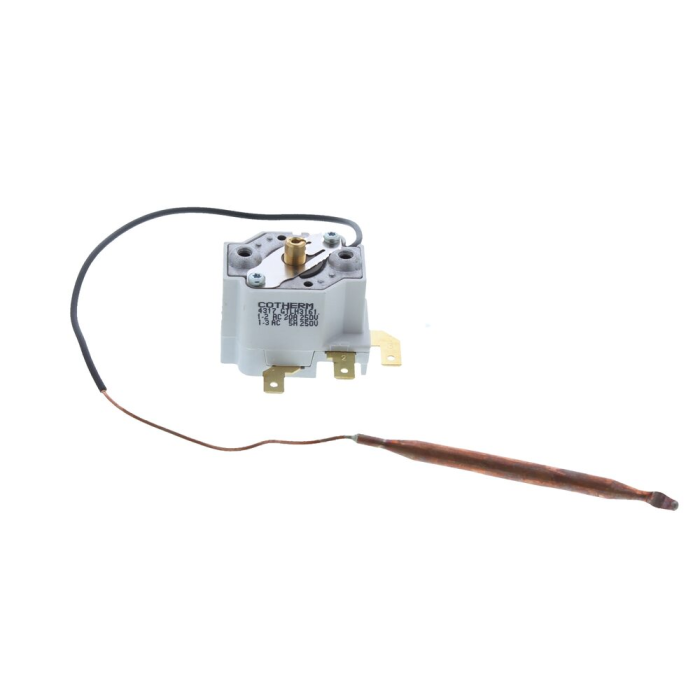

Cotherm HRP0200 Capillary Thermostat GTLH3161 | Genuine Replacement Spare Part
- SKU
- EDDCOTHERM13
Genuine Cotherm HRP0200 GTLH3161 Capillary Thermostat
Genuine Cotherm HRP0200 capillary thermostat. Hot water and heating plant needing an adjustable capillary control thermostat with a 362mm sensing capillary.
What it does
A capillary thermostat senses temperature at the end of a thin tube rather than on a rigid stem, so the sensing point can sit well away from the switch body. That makes it the usual choice for plant where there is no room for a rod stat, and it works in air or in water. A regulating version holds a set temperature; a manual-reset limiter is a safety device only, and once it trips it stays tripped until somebody presses the button, which is exactly what you want after an overheat.
Where it fits
Hot water and heating plant needing an adjustable capillary control thermostat with a 362mm sensing capillary.
Specification
- HRP order code HRP0200
- Cotherm part number GTLH3161
- Temperature range 10 C to 70 C
- Capillary length 362mm, copper
- Single pole double throw (SPDT)
Installation
Wiring is work for a qualified electrician; isolate before removing the thermostat head.
| MPN | HRP0200 |
|---|---|
| Product Code | EDDCOTHERM13 |
| Compatible With: Product Code (SKU) | Hot water and heating plant needing an adjustable capillary control thermostat with a 362mm sensing capillary. |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Cotherm |
| Empty Weight (kG) | 0.2 |
| Full Weight (kG) | 0.5 |
