Cotherm HRP0201 Capillary Thermostat GTLHR070 | Genuine Replacement Spare Part
- SKU
- EDDCOTHERM14

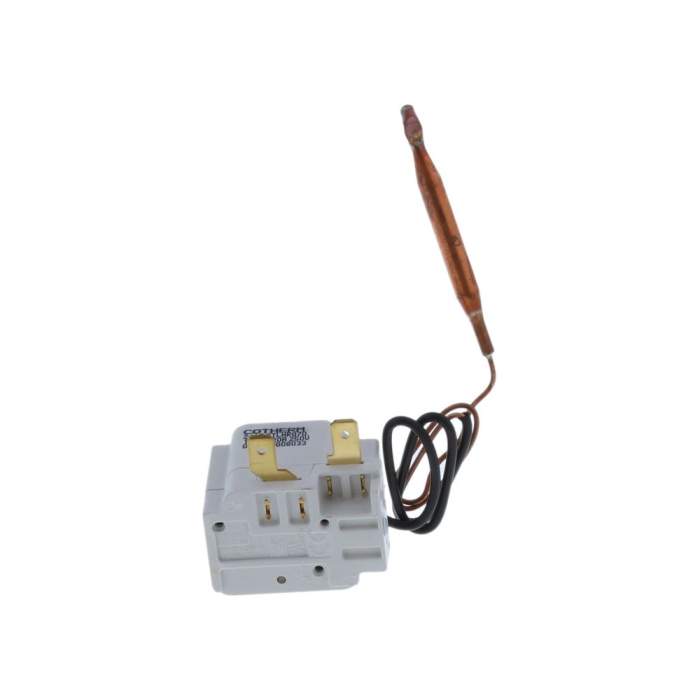

Genuine Cotherm HRP0201 GTLHR070 Manual Reset Limiter Thermostat
Genuine Cotherm HRP0201 capillary thermostat. Domestic and industrial heating plant needing a fixed manual-reset over-temperature limiter, sensing in air or in water.
What it does
A capillary thermostat senses temperature at the end of a thin tube rather than on a rigid stem, so the sensing point can sit well away from the switch body. That makes it the usual choice for plant where there is no room for a rod stat, and it works in air or in water. A regulating version holds a set temperature; a manual-reset limiter is a safety device only, and once it trips it stays tripped until somebody presses the button, which is exactly what you want after an overheat.
Where it fits
Domestic and industrial heating plant needing a fixed manual-reset over-temperature limiter, sensing in air or in water.
Specification
- HRP order code HRP0201
- Cotherm part number GTLHR070
- Fixed setting 80 C
- Sensing range -35 C to 350 C
- Rated 20A at 250V (EN, UL)
- Trip-free manual reset
- Brass or nickel plated faston or pillar terminals
- Suits air or immersion sensing
Installation
Wiring is work for a qualified electrician; isolate before removing the thermostat head.
| MPN | HRP0201 |
|---|---|
| Product Code | EDDCOTHERM14 |
| Compatible With: Product Code (SKU) | Domestic and industrial heating plant needing a fixed manual-reset over-temperature limiter, sensing in air or in water. |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Cotherm |
