Danfoss BFP 071N1006 Solenoid Coil 220/240V | Genuine Replacement Spare Part
- SKU
- EDDDANFOSSPARTS25

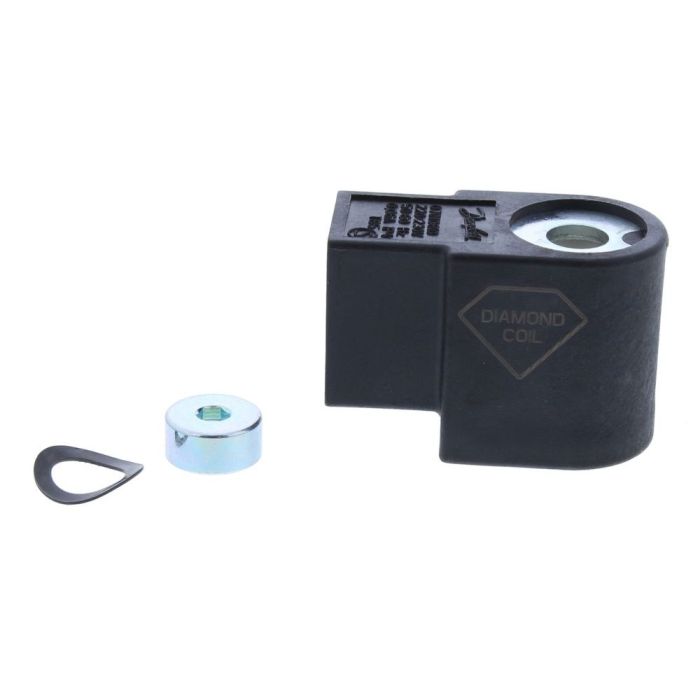

Genuine Danfoss 071N1006 BFP Solenoid Coil
Genuine Danfoss 071N1006 solenoid coil kit for BFP oil burner pumps: a 220/240V coil for the normally closed valve, supplied with nut and washer.
What it does
The coil operates the pump's normally closed solenoid valve. When the burner calls for heat the coil is energised, the valve opens and oil flows to the nozzle; when it is de-energised the valve snaps shut and cuts the oil off.
Signs it needs replacing
A burner motor that runs but never lights, locking out every time, often means the valve is not opening because the coil has failed. A coil that reads open circuit on a meter confirms it.
Where it fits
Danfoss BFP 11, 21, 31 and 41 oil pumps (sizes 2 to 6), plus BFPC, BFA and BFP 52E. Replaces coils 071N0051, 071N0631, 071N0808 and 071N0810. Nu-Way part B16189F.
Specification
- Danfoss code 071N1006, T85 coil
- Normally closed (NC) valve coil
- 220/240 V AC
- Supplied as coil, nut and washer
- Fits Danfoss BFP 11, 21, 31 and 41 pumps (sizes 2 to 6), BFPC, BFA and BFP 52E
- Replaces Danfoss coils 071N0051, 071N0631, 071N0808 and 071N0810
- Nu-Way part number B16189F
Installation
Fitting by an OFTEC registered oil technician is recommended. Isolate the electrical supply before changing the coil. In stock at Electrical Deals Direct.
| MPN | BFP COIL 071N1006 |
|---|---|
| Product Code | EDDDANFOSSPARTS25 |
| Compatible With: Product Code (SKU) | Danfoss BFP 11, 21, 31 and 41 oil pumps (sizes 2 to 6), plus BFPC, BFA and BFP 52E. Replaces coils 071N0051, 071N0631, 071N0808 and 071N0810. Nu-Way part B16189F. |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Danfoss |
| Empty Weight (kG) | 0.2 |
| Full Weight (kG) | 0.2 |
