Danfoss BFP11L3 071N7141 Oil Pump | Genuine Replacement Spare Part
- SKU
- EDDDANFOSSPARTS20

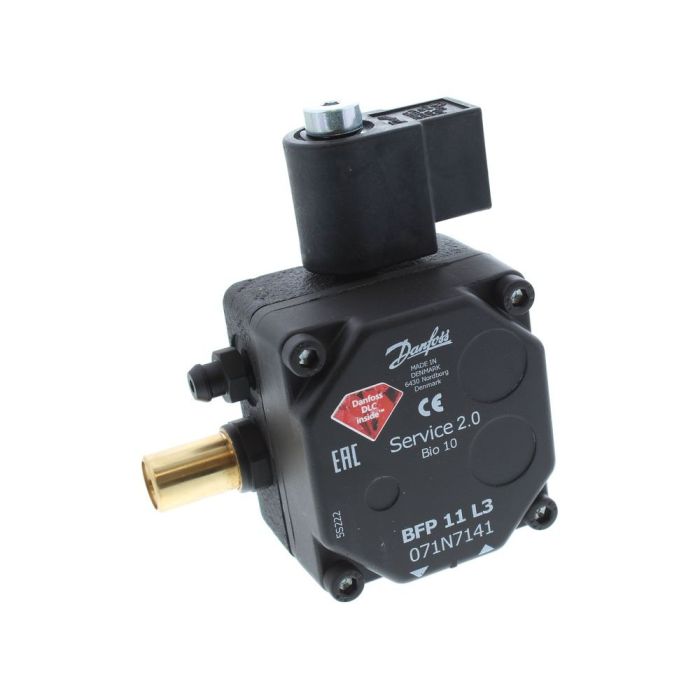

Genuine Danfoss 071N7141 BFP 11 L3 Oil Pump
Genuine Danfoss BFP 11 L3 Diamond oil burner pump, code 071N7141. Counter-clockwise rotation, side pressure regulation and a built-in normally closed solenoid valve.
What it does
The pump draws oil from the tank, raises it to a steady pressure and feeds it to the burner nozzle. A diaphragm regulator holds the set pressure, and the built-in normally closed solenoid valve opens the nozzle line only while the burner is firing, then shuts it off cleanly when the burner stops.
Signs it needs replacing
A burner that locks out, struggles to hold oil pressure, runs noisily, leaks oil at the shaft or drips after shutdown usually points to a worn pump or a failing valve.
Where it fits
Oil burners using a Danfoss BFP 11 L3 pump (counter-clockwise). Replaces Danfoss 071N0141, 071N0142, 071N0144, 071N0146, 071N0152, 071N0153 and 071N4141. Nu-Way part E02149FD.
Specification
- Danfoss BFP 11 L3, code 071N7141
- Rotation counter-clockwise, viewed from the shaft end
- Side pressure regulation, ring filter (spare 071N0063)
- Pressure range 7 to 15 bar
- Built-in normally closed (NC) solenoid valve, 220/240 V coil
- Factory pressure setting 10 bar
- Supplied set for 1-pipe operation, convertible to 2-pipe
- Ports: suction and return G 1/4, nozzle G 1/8, pressure and vacuum gauge G 1/8
- Type 3 pump size, speed range 2400 to 3600 rpm
- Replacement coil: Danfoss 071N1006
- Replaces Danfoss 071N0101, 071N0103, 071N0141, 071N0142, 071N0144, 071N0146, 071N0152, 071N0153, 071N0210, 071N0213 and 071N4141
- Nu-Way part number E02149FD
Installation
Fitting by an OFTEC registered oil technician is recommended. Isolate the electrical and oil supplies first, match the rotation to the burner, then set the pump pressure with a gauge to the burner manufacturer's figure. In stock at Electrical Deals Direct.
| MPN | BFP11L3 071N7141 |
|---|---|
| Product Code | EDDDANFOSSPARTS20 |
| Compatible With: Product Code (SKU) | Oil burners using a Danfoss BFP 11 L3 pump (counter-clockwise). Replaces Danfoss 071N0141, 071N0142, 071N0144, 071N0146, 071N0152, 071N0153 and 071N4141. Nu-Way part E02149FD. |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Danfoss |
| Empty Weight (kG) | 1 |
| Full Weight (kG) | 1 |
