Danfoss BFP41L3 071N8213 Oil Pump | Genuine Replacement Spare Part
- SKU
- EDDDANFOSSPARTS24

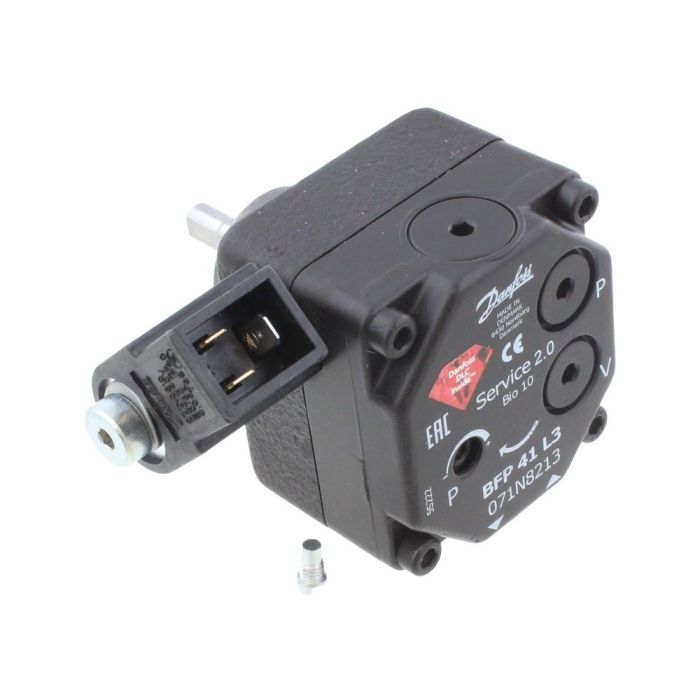

Genuine Danfoss 071N8213 BFP 41 L3 Oil Pump
Genuine Danfoss BFP 41 L3 Diamond oil burner pump, code 071N8213. Counter-clockwise rotation, front pressure regulation and a normally closed solenoid valve mounted on the side.
What it does
The pump draws oil from the tank, raises it to a steady pressure and feeds it to the burner nozzle. A diaphragm regulator holds the set pressure, and the built-in normally closed solenoid valve opens the nozzle line only while the burner is firing, then shuts it off cleanly when the burner stops.
Signs it needs replacing
A burner that locks out, struggles to hold oil pressure, runs noisily, leaks oil at the shaft or drips after shutdown usually points to a worn pump or a failing valve.
Where it fits
Oil burners using a Danfoss BFP 41 L3 pump (counter-clockwise). Supersedes 071N1213 (EOGB D01-071N1213). Danfoss's current service equivalent is 071N7174.
Specification
- Danfoss BFP 41 L3, code 071N8213
- Rotation counter-clockwise, viewed from the shaft end
- Front pressure regulation, cartridge filter (spare 071N0064), solenoid valve mounted on the side
- Pressure range 7 to 20 bar
- Built-in normally closed (NC) solenoid valve, 220/240 V coil
- Factory pressure setting 10 bar
- Supplied set for 1-pipe operation, convertible to 2-pipe
- Ports: suction and return G 1/4, nozzle G 1/8, pressure and vacuum gauge G 1/8
- Type 3 pump size, speed range 2400 to 3600 rpm
- Replacement coil: Danfoss 071N1006
- Supersedes Danfoss 071N1213 (EOGB part D01-071N1213)
- Current Danfoss service equivalent: BFP 41 L3 071N7174 (supplied set for 2-pipe, convertible to 1-pipe)
Installation
Fitting by an OFTEC registered oil technician is recommended. Isolate the electrical and oil supplies first, match the rotation to the burner, then set the pump pressure with a gauge to the burner manufacturer's figure. In stock at Electrical Deals Direct.
| MPN | BFP41L3 071N8213 |
|---|---|
| Product Code | EDDDANFOSSPARTS24 |
| Compatible With: Product Code (SKU) | Oil burners using a Danfoss BFP 41 L3 pump (counter-clockwise). Supersedes 071N1213 (EOGB D01-071N1213). Danfoss's current service equivalent is 071N7174. |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Danfoss |
| Empty Weight (kG) | 1 |
| Full Weight (kG) | 1 |
