Gledhill StainlessLite Plus Direct 300L Unvented Cylinder PLUDR300
- SKU
- EDDGLEDHILL33

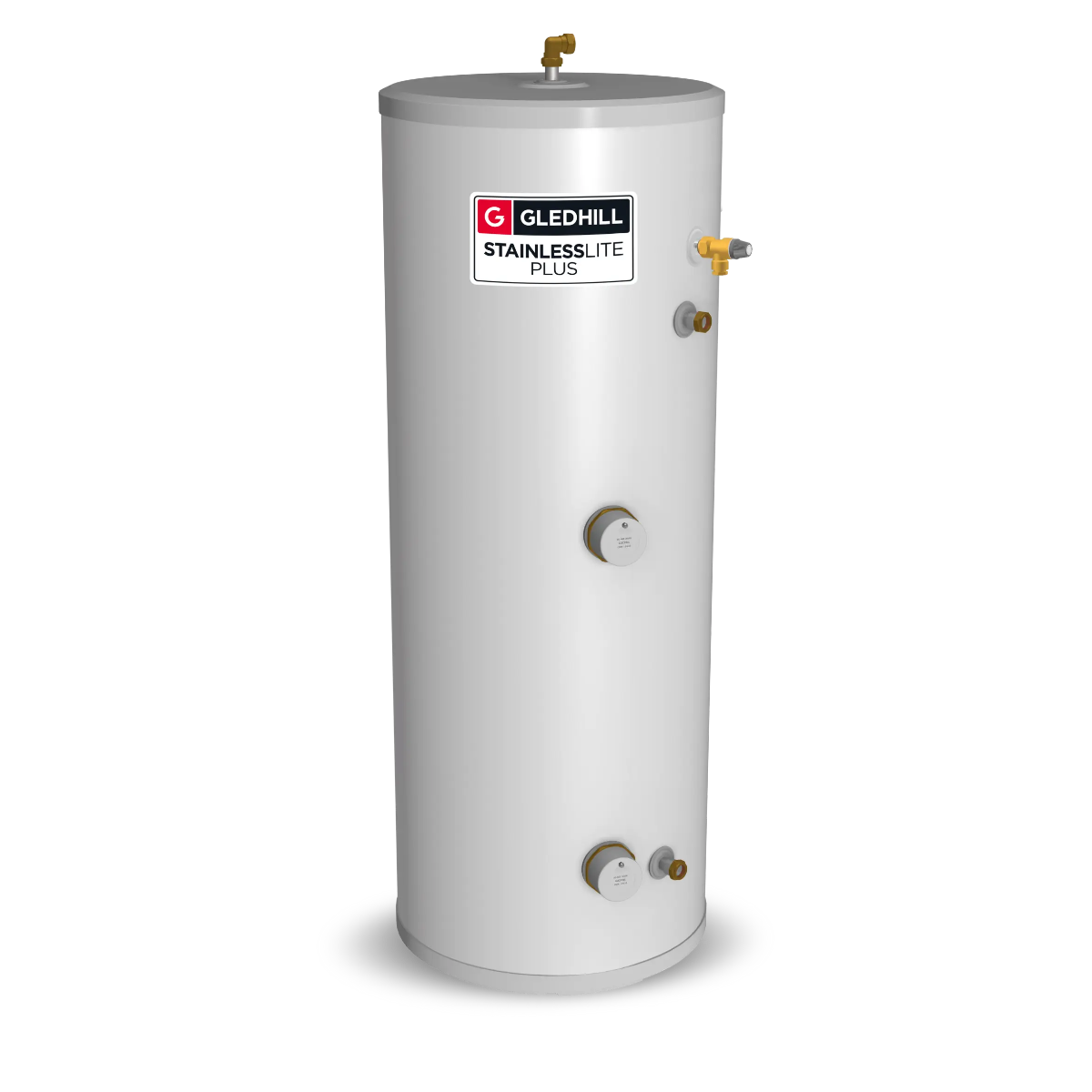

Gledhill StainlessLite Plus Direct 300L Unvented Cylinder
The Gledhill StainlessLite Plus Direct 300 litre is an electrically heated, unvented mains-pressure hot water cylinder, built from high-grade duplex stainless steel for long, corrosion-resistant service. It delivers high-flow mains-pressure hot water to multiple outlets without a cold water storage tank, and is supplied with two 3kW immersion heaters (on-peak and off-peak) for use on standard and off-peak (economy) electricity tariffs.
Supplied as a complete Building Regulations G3 package: combination inlet group (pressure-reducing valve, strainer, check valve and expansion relief valve), a potable expansion vessel with wall bracket, the temperature and pressure relief valve, and a tundish. The temperature and pressure relief valve is factory set to 6 bar and 95°C. Backed by Gledhill's 25-year cylinder guarantee.
- 25-year cylinder guarantee
- Duplex stainless steel construction
- High-flow mains-pressure performance, no cold-water storage tank required
- ErP energy rating C
- Twin immersion heaters for standard and off-peak (economy) tariffs
Specification
| Capacity | 300 litres |
|---|---|
| Heating | Electric (immersion heated) |
| Immersion heaters | two 3kW immersion heaters (on-peak and off-peak) |
| Total immersion load | 6 kW |
| Heat-up time (from cold) | 299 minutes |
| Dimensions (H x diameter) | 1990 x 550 mm |
| ErP energy rating | C |
| Weight (empty / full) | 41 kg / 328 kg |
| Operating pressure | 3 bar |
| Expansion vessel | External (supplied) |
| Construction | Duplex stainless steel |
| Guarantee | 25 years (cylinder) |
What's included?
Combination inlet group (PRV, strainer, check valve, expansion relief valve), potable expansion vessel with wall bracket, temperature and pressure relief valve, and tundish.
This cylinder carries full WRAS and NSF/WRc approval for use with potable (drinking) water. The Gledhill StainlessLite Plus cylinders are primarily designed for 22mm domestic pipework.
G3 qualified installation is a legal requirement for unvented hot water storage under Building Regulations Part G.
| MPN | PLUDR300 |
|---|---|
| Product Code | EDDGLEDHILL33 |
| Height (mm) | 1990 |
| Width (mm) | 550 |
| Depth (mm) | 550 |
| Capacity | 300 |
| Power (Watts) | 6000 |
| Recovery Time (mins) | 299 |
| Heater Type | Cylinder |
| Warranty (years) | 2 |
| Energy Performance Rating | C |
| Empty Weight | 41 |
| Full Weight (kG) | 328 |
