Gledhill StainlessLite Plus Indirect 120L Unvented Cylinder PLUIN120
- SKU
- EDDGLEDHILL35

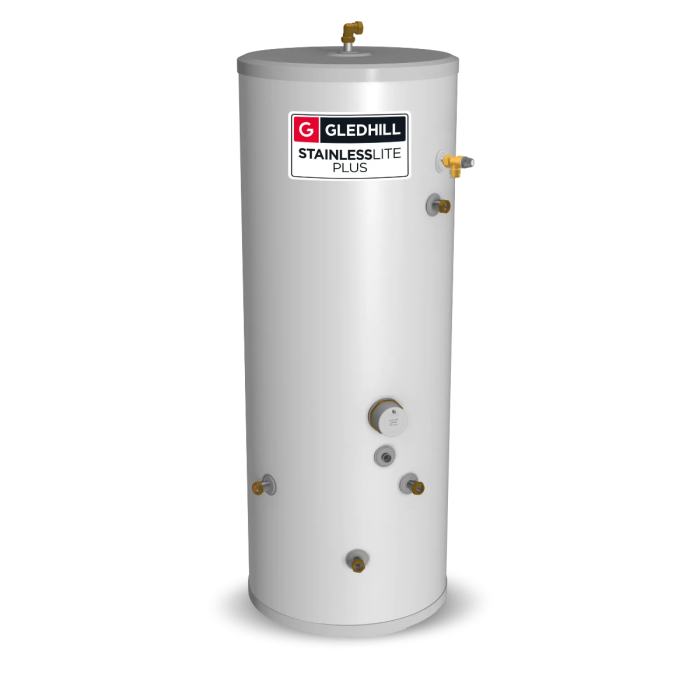

Gledhill StainlessLite Plus Indirect 120L Unvented Cylinder
The Gledhill StainlessLite Plus Indirect 120 litre is an unvented mains-pressure hot water cylinder in high-grade duplex stainless steel. Primary heating is by a gas or oil boiler through a high-efficiency corrugated stainless coil for rapid recovery, with a 3kW back-up immersion heater fitted for backup or when the boiler is not running. It delivers high-flow mains-pressure hot water to multiple outlets without a cold water storage tank.
Supplied as a complete Building Regulations G3 package: combination inlet group (pressure-reducing valve, strainer, check valve and expansion relief valve), a potable expansion vessel with wall bracket, the temperature and pressure relief valve, and a tundish. The temperature and pressure relief valve is factory set to 6 bar and 95°C. Backed by Gledhill's 25-year cylinder guarantee.
- 25-year cylinder guarantee
- Duplex stainless steel construction
- High-flow mains-pressure performance, no cold-water storage tank required
- ErP energy rating B
- Rapid boiler recovery through a high-efficiency corrugated coil
Specification
| Capacity | 120 litres |
|---|---|
| Primary heating | Gas or oil boiler via internal corrugated coil |
| Backup heating | a 3kW back-up immersion heater |
| Total immersion load | 3 kW |
| Boiler reheat time | 21 minutes |
| Dimensions (H x diameter) | 931 x 550 mm |
| ErP energy rating | B |
| Weight (empty / full) | 23 kg / 142 kg |
| Operating pressure | 3 bar |
| Expansion vessel | External (supplied) |
| Construction | Duplex stainless steel |
| Guarantee | 25 years (cylinder) |
What's included?
Combination inlet group (PRV, strainer, check valve, expansion relief valve), potable expansion vessel with wall bracket, temperature and pressure relief valve, and tundish.
This cylinder carries full WRAS and NSF/WRc approval for use with potable (drinking) water. The Gledhill StainlessLite Plus cylinders are primarily designed for 22mm domestic pipework.
G3 qualified installation is a legal requirement for unvented hot water storage under Building Regulations Part G.
| MPN | PLUIN120 |
|---|---|
| Product Code | EDDGLEDHILL35 |
| Height (mm) | 931 |
| Width (mm) | 550 |
| Depth (mm) | 550 |
| Capacity | 120 |
| Power (Watts) | 3000 |
| Recovery Time (mins) | 21 |
| Heater Type | Cylinder |
| Warranty (years) | 25 Cylinder / 2 Parts |
| Energy Performance Rating | B |
| Empty Weight (kG) | 23 |
| Full Weight (kG) | 142 |
| Brand | Gledhill |
