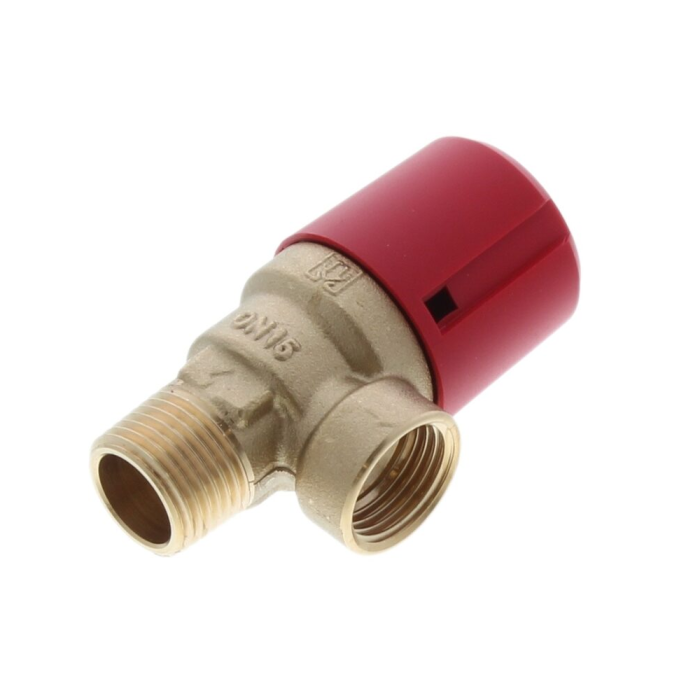

Intergas 844417 Pressure Relief Valve 1/2" | Genuine Replacement Spare Part
- SKU
- EDDINTERGAS05
Need something else?
Can’t find what you’re looking for? Click here to use our spare part finder.Intergas 844417 Pressure Relief Valve 1/2" – Genuine Replacement Spare Part
The Intergas 844417 is a genuine half-inch pressure relief valve designed for use across a wide range of Intergas HRE Compact, Combi Compact, and ECO RF boilers. WRAS approved and manufactured to full OEM specification, this valve is one of the most safety-critical components in the entire boiler; its sole purpose is to protect the system from the consequences of uncontrolled pressure build-up. Under normal operating conditions, a central heating system runs at between one and two bars of pressure. If something causes that pressure to rise beyond safe limits, whether through a faulty expansion vessel, an incorrectly set filling loop, thermal expansion in a sealed system, or a fault elsewhere in the boiler, the pressure relief valve is the last line of defence. When system pressure reaches three bar, the valve opens automatically, releasing water from the system and preventing the pressure from climbing to a level that could cause catastrophic damage to the heat exchanger, pipework, or other components. Once the pressure has dropped back to a safe level, the valve closes again. A pressure relief valve that is weeping, dripping persistently, or has discharged visibly onto the floor is not always a sign that the valve itself has failed. In many cases, it is telling you that system pressure is genuinely too high and needs investigation at the root cause. However, a PRV that has lifted and discharged can also sustain internal damage to its seat in the process, making it prone to weeping even after the system pressure is corrected. In this situation, the valve must be replaced, a weeping PRV is not a valve doing its job, it is a valve that can no longer hold a proper seal.
Key Features:
Part Number: 844417
Connection size: 1/2 inch
Opening pressure: 3 bar
Approval: WRAS approved
Diagram position: Number 8 on the Intergas exploded parts diagram
Genuine Intergas spare part - manufactured to full OEM specification
Must be fitted by a Gas Safe registered engineer
Compatible Boilers:
Intergas HRE Compact 18 SB, 24 SB, 30 SB, 40 SB
Intergas HRE Compact 18 OV, 24 OV, 30 OV
Intergas Combi Compact HRE 24/18, 28/24, 36/30, 36/40
Intergas ECO RF 24, 30, 36
Intergas provide a 1 year warranty on all spare parts. Electrical Deals Direct now sells a wide range of spare parts. If you cannot see the item you require on our website, please call 01934 253600 or email [email protected] for more information.
| MPN | 844417 |
|---|---|
| Product Code | INTERGAS05 |
| Compatible With: Product Code (SKU) | Intergas HRE Compact 18/24/30/40 SB; Combi Compact HRE 24/18, 28/24, 36/30 & 36/40; ECO RF 24/30/36. |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Intergas |
| Full Weight (kG) | 0.5 |
