Reliance PREL102045 3.5 Bar PRV 3/4" F x F | Genuine Replacement Spare Part
- SKU
- EDDRELIANCE78

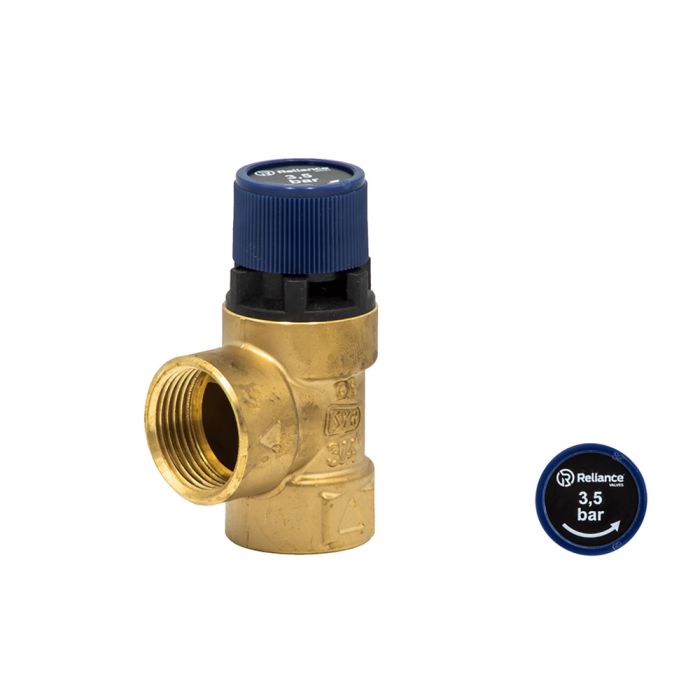

Genuine Reliance PREL102045 3.5 Bar 102 Series Relief Valve 3/4" F x F BSP
102 Series potable water relief valve, pre-set and locked at 3.5 bar, with 3/4 inch female BSP connections both ends. The cartridge lifts out for cleaning or replacement.
What it does
Water expands as it heats. An expansion relief valve opens at its set pressure and releases the excess to the tundish, so the system never runs above its design pressure. A relief valve that drips continually is a common sign it needs replacing.
Where it fits
Unvented hot water cylinders and sealed water systems - the expansion relief valve that discharges excess pressure at its set point.
Specification
- Series 102
- Pressure setting 3.5 bar (pre-set and locked)
- Connections 3/4" F x F BSP
- Body test pressure 20 bar
- Maximum temperature 140 C
- DZR brass body, EPDM diaphragm
- Stainless steel spring
- Replacement cartridge ZRC214031
- Certified to BS EN 1491
- WRAS approved
Installation
G3 qualified installation required where fitted to an unvented hot water system (Building Regulations Part G). A genuine Reliance part for a reliable, like-for-like replacement. In stock at Electrical Deals Direct.
| MPN | PREL102045 |
|---|---|
| Product Code | EDDRELIANCE78 |
| Compatible With: Product Code (SKU) | Unvented hot water cylinders and sealed water systems; the expansion relief valve that discharges excess pressure at its set point |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Reliance |
| Empty Weight (kG) | 0.5 |
| Full Weight (kG) | 0.5 |
