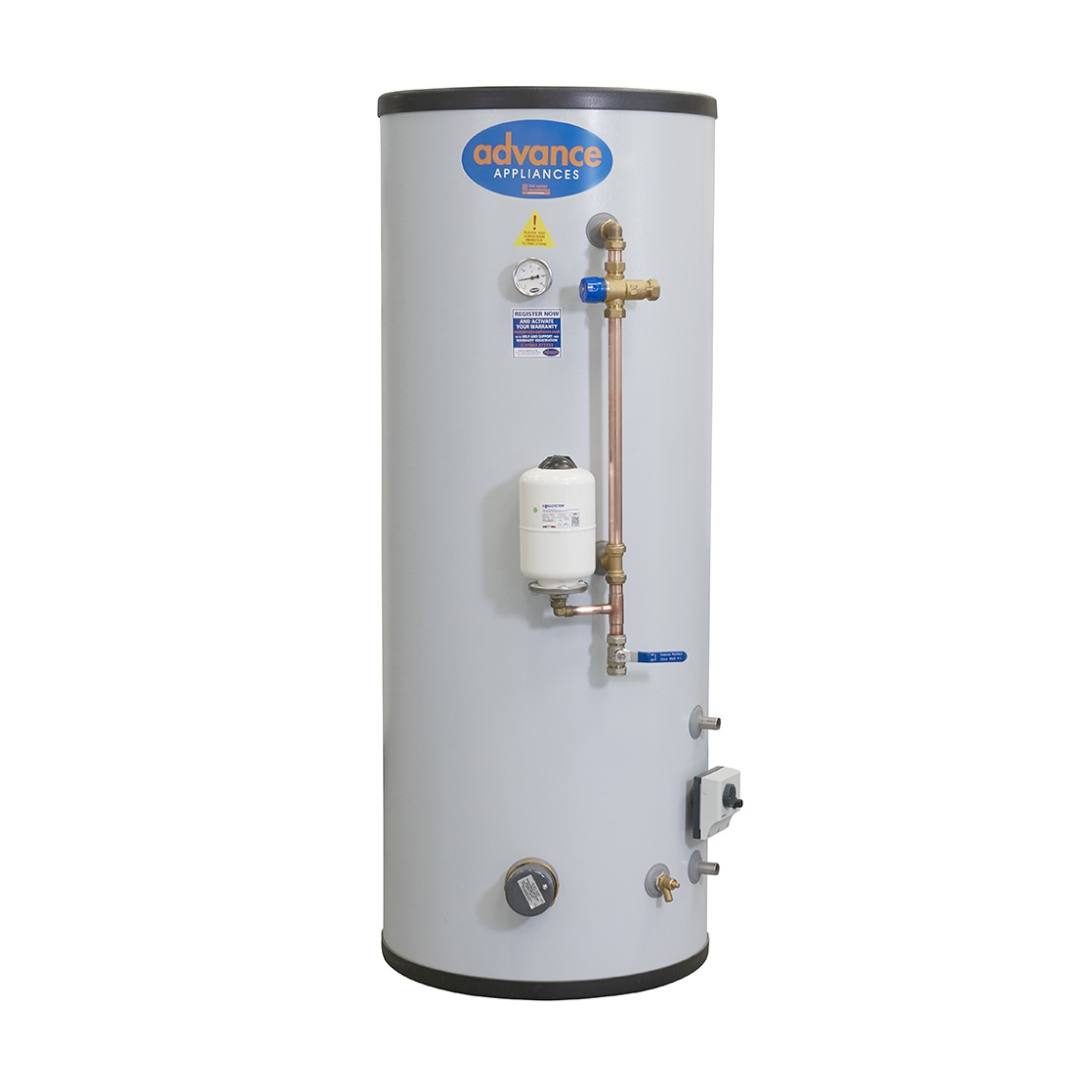

Advance Appliances Electric Thermal Store Indirect TSIC170 Cylinder Only
- SKU
- EDDAA23
Our Expert's Opinion
"High quality, British made appliances."Advance Appliances TSiC170 170 Litre Indirect Thermal Store
The Advance Appliances TSiC170 is a 170 litre indirect twin coil vented thermal store for use with a gas, oil, solid fuel or biomass boiler. It stores central heating water and passes mains water through an internal coil, giving mains pressure hot water for powerful showers and quick bath filling without the need for an unvented cylinder.
How it works
In the indirect pattern the boiler heats the store through the lower coil, so it can be used with a sealed system boiler in a Y plan with a single pump. The store stays vented and its water is used only to carry heat.
The indirect pattern can be sited anywhere in the property.
Cold section
This is the cylinder only version, with no cold section: the feed and expansion tank is fitted remotely at the top of the system, giving more choice of position.
Replacing an older store
Advance thermal stores are a like-for-like replacement for Boilermate, Flomax and Albion Mainsflow stores. Made in the UK and built to the HWA specification.
Specification
- Capacity: 170 litres
- Type: vented thermal store, indirect twin coil, cylinder only (no cold section)
- Suits: 1 bath and 2 showers
- Minimum boiler size: 18kW
- Heat loss: 50W (class B)
- Weight: 45kg
- Low maintenance, pre-plumbed unit (Advance Appliances)
- Flow rate: up to 30 litres per minute (Advance Appliances)
- Stainless steel store with 22mm hot and cold connections
- Fitted with a hot water control pack and immersion heater backup
- For gas, oil, solid fuel or biomass boilers (not heat pumps)
- Warranty: 10 years on the store, 2 years on fitted components (Advance Appliances)
Installation
Installation by a qualified heating engineer is required. Check the minimum boiler size before ordering; a smaller boiler will lengthen recovery times.
Need help choosing? Call our team on 01934 253600 or email [email protected].
| MPN | TSIC170 |
|---|---|
| Product Code | EDDAA23 |
| Height (mm) | 1243 |
| Width (mm) | 600 |
| Depth (mm) | 600 |
| Capacity | 170 |
| Power (Watts) | 3000 |
| Heater Type | Thermal Store |
| Warranty (years) | 2 |
| Energy Performance Rating | B |
| Empty Weight (kG) | 45 |
| Full Weight (kG) | 215 |
| Brand | Advance Appliances |
