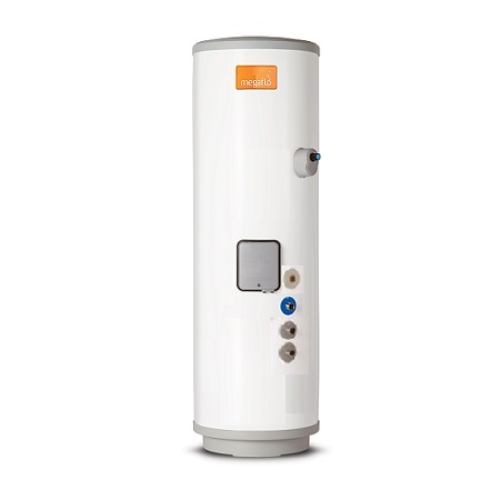

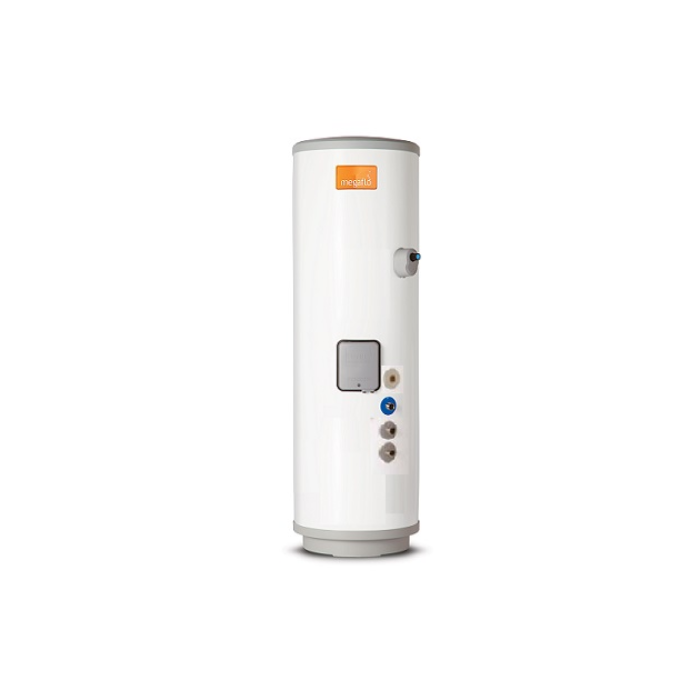

Heatrae Sadia Megaflo Eco Unvented Slimline Indirect 200i Hot Water Cylinder 7034091
- SKU
- EDDSADIASL200I
Our Expert's Opinion
"Definitely the brand leader, and it has built-in expansion. You may want to also consider some of the cheaper ranges."Heatrae Sadia Megaflo Eco Slimline 200i Indirect Unvented Cylinder
The Megaflo Eco Slimline 200i is a 200 litre indirect unvented hot water cylinder, heated by your boiler through an internal coil: a compact version of the Megaflo Eco for homes where a standard size cylinder will not fit. At just 491mm in diameter it is taller and slimmer than a standard cylinder, giving mains pressure hot water to every outlet.
Why choose the Slimline
The internal expansion system means there is no separate expansion vessel to find room for. A 3kW immersion heater is fitted as a backup, and a wiring centre and 22mm 2 port motorised valve are supplied for the boiler connection.
Warranty
Heatrae Sadia's Megaflo warranty covers the stainless steel inner tank against corrosion for 30 years in domestic properties and all other components for 2 years, provided the cylinder is registered with Heatrae Sadia within 60 days of installation and serviced annually.
Specification
- Capacity: 200 litres (mixed water at 40°C: 247 litres)
- Coil rating: 16.9kW (at 15 litres per minute primary flow)
- Heat-up time: 35 minutes from 15°C to 60°C (80°C primary flow); 70% recovery in 26 minutes
- Backup immersion heater: 1 x 3kW
- Dimensions: 2079mm high, 491mm diameter
- Weight: 48kg empty, 243kg full
- ErP rating: C
- High grade duplex stainless steel inner container, pressure tested to 15 bar
- Internal expansion (air gap with floating baffle): no external expansion vessel needed
- Up to 70 litres per minute at 3 bar
- Supplied with the cold water inlet control kit (3 bar pressure reducing valve, 8 bar relief valve, isolating valve, line strainer, non-return valve, drain valve), a factory-fitted T&P relief valve and a 15/22mm tundish
- 22mm male connections, 491mm diameter
- Heatrae Sadia product code: 7034091
Installation
This is an unvented cylinder, so it must be installed by a G3 qualified installer (Building Regulations Part G) and serviced annually to keep the warranty valid.
Need help choosing? Call our team on 01934 253600 or email [email protected].
| MPN | 7034091 |
|---|---|
| Product Code | EDDSADIASL200i |
| Height (mm) | 2079 |
| Width (mm) | 491 |
| Depth (mm) | 516 |
| Capacity | 200 |
| Power (Watts) | 3000 |
| Recovery Time (mins) | 35 |
| Heater Type | Cylinder |
| Warranty (years) | 30 Cylinder / 2 Parts |
| Energy Performance Rating | C |
| Empty Weight (kG) | 48 |
| Full Weight (kG) | 243 |
| Brand | Heatrae Sadia |
