Cimm ERE 12 Heating Expansion Vessel 12L 3/4" MBSP with Bracket & Sealed System Kit | Genuine Replacement Spare Part
- SKU
- EDDCIMM11

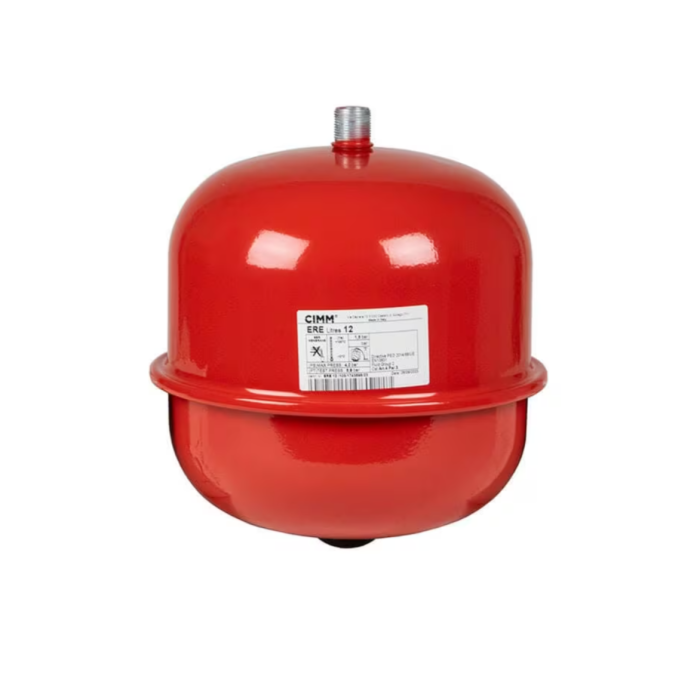

Genuine Cimm ERE 12 12 Litre Expansion Vessel
Genuine Cimm ERE 12 12 litre expansion vessel for sealed central heating and chilled water circuits, with a 3/4" BSP male connection and a 1.5 bar factory pre-charge. Supplied with a mounting bracket and a sealed system kit.
What it does
Water expands as it is heated, and in a sealed heating circuit that expansion has nowhere to go, so pressure rises until the safety valve lifts. The vessel takes up the extra volume against a pre-charged air cushion and holds system pressure steady. The ERE uses a fixed rubber diaphragm rather than an interchangeable bag, designed to hold its air pre-charge at the higher temperatures a heating circuit sees. A vessel that has lost its charge is the usual reason a boiler keeps losing pressure or dumping through the relief valve.
Where it fits
Sealed (closed) central heating systems, chilled water and refrigeration circuits; absorbs the expansion of the system water so pressure stays within limits; 12 litre, 3/4" BSP male connection, 1.5 bar pre-charge, 4.0 bar maximum.
Specification
- Cimm model ERE 12, order code 820012
- Capacity 12 litres
- Dimensions 285mm diameter x 325mm high
- Connection M 3/4" Gas
- Factory pre-charge 1.5 bar
- Maximum working pressure 4.0 bar
- Working temperature -10 to +100 C
- Fixed diaphragm membrane
- Epoxy powder coated, red
- PED 2014/68/UE; DIN EN 13831
- Mounting bracket and sealed system kit included
Installation
Fitting and re-pressurising is work for a qualified heating engineer.
| MPN | ERE 12 SSK |
|---|---|
| Product Code | EDDCIMM11 |
| Compatible With: Product Code (SKU) | Sealed (closed) central heating systems, chilled water and refrigeration circuits; absorbs the expansion of the system water so pressure stays within limits; 12 litre, 3/4" BSP male connection, 1.5 bar pre-charge, 4.0 bar maximum. |
| Part Origin | Genuine |
| Part or Accessory? | Accessory |
| Brand | Cimm Vessels |
