Danfoss BFP21R3 071N7157 Oil Pump | Genuine Replacement Spare Part
- SKU
- EDDDANFOSSPARTS23

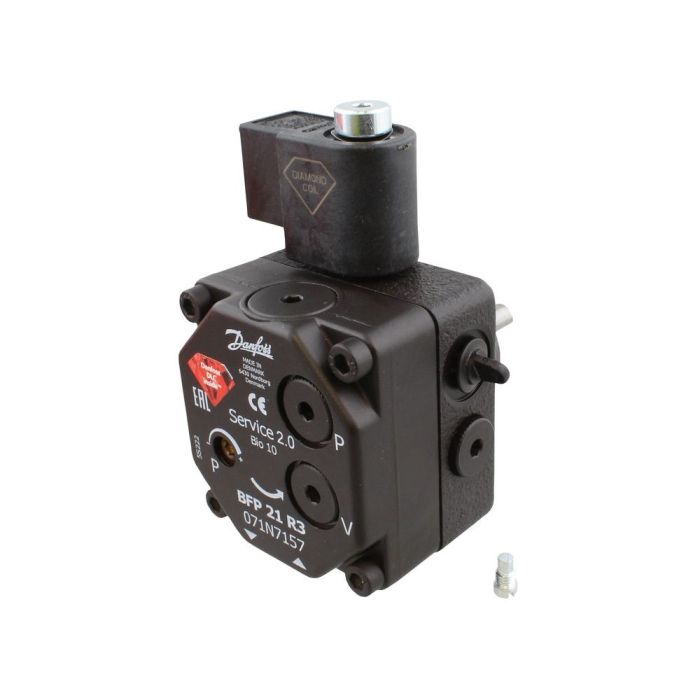

Genuine Danfoss 071N7157 BFP 21 R3 Oil Pump
Genuine Danfoss BFP 21 R3 Diamond oil burner pump, code 071N7157. Clockwise rotation, front pressure regulation, cartridge filter and a built-in normally closed solenoid valve.
What it does
The pump draws oil from the tank, raises it to a steady pressure and feeds it to the burner nozzle. A diaphragm regulator holds the set pressure, and the built-in normally closed solenoid valve opens the nozzle line only while the burner is firing, then shuts it off cleanly when the burner stops.
Signs it needs replacing
A burner that locks out, struggles to hold oil pressure, runs noisily, leaks oil at the shaft or drips after shutdown usually points to a worn pump or a failing valve.
Where it fits
Oil burners using a Danfoss BFP 21 R3 pump (clockwise). Nu-Way part E02137KD. Danfoss's current service equivalent is 071N7171.
Specification
- Danfoss BFP 21 R3, code 071N7157
- Rotation clockwise, viewed from the shaft end
- Front pressure regulation, cartridge filter (spare 071N0064)
- Pressure range 7 to 20 bar
- Built-in normally closed (NC) solenoid valve, 220/240 V coil
- Factory pressure setting 10 bar
- Supplied set for 1-pipe operation, convertible to 2-pipe
- Ports: suction and return G 1/4, nozzle G 1/8, pressure and vacuum gauge G 1/8
- Type 3 pump size, speed range 2400 to 3600 rpm
- Replacement coil: Danfoss 071N1006
- Current Danfoss service equivalent: BFP 21 R3 071N7171 (supplied set for 2-pipe, convertible to 1-pipe)
- Nu-Way part number E02137KD
Installation
Fitting by an OFTEC registered oil technician is recommended. Isolate the electrical and oil supplies first, match the rotation to the burner, then set the pump pressure with a gauge to the burner manufacturer's figure. In stock at Electrical Deals Direct.
| MPN | BFP21R3 071N7157 |
|---|---|
| Product Code | EDDDANFOSSPARTS23 |
| Compatible With: Product Code (SKU) | Oil burners using a Danfoss BFP 21 R3 pump (clockwise). Nu-Way part E02137KD. Danfoss's current service equivalent is 071N7171. |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Danfoss |
| Empty Weight (kG) | 1 |
| Full Weight (kG) | 1 |
