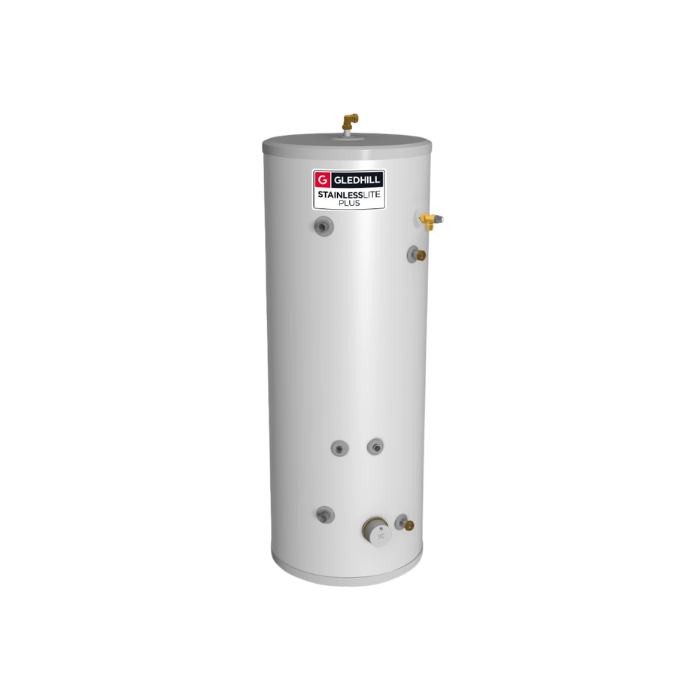

Gledhill StainlessLite Plus Heat Pump 300L Unvented Cylinder PLUHP300
- SKU
- EDDPLUHP300
Our Expert's Opinion
"High efficiency corrugated coil maximises heat transfer to the cylinder of water"Gledhill StainlessLite Plus Heat Pump 300L Unvented Cylinder
The Gledhill StainlessLite Plus Heat Pump 300 litre is an unvented mains-pressure hot water cylinder engineered for use with air source (ASHP) or ground source (GSHP) heat pump systems. Built from high-grade duplex stainless steel with a large-surface primary coil optimised for the low flow temperatures typical of heat pump operation (typically 45-55°C), it delivers high-flow mains-pressure hot water to multiple outlets without a cold water storage tank. A 3kW backup immersion heater is fitted for boost or emergency backup.
Designed as a complete, Building Regulations G3-ready package for heat pump installations. Supplied with an internal expansion vessel (no separate external vessel required), the combination inlet group (pressure-reducing valve, strainer, check valve and expansion relief valve), temperature and pressure relief valve, and tundish. Backed by Gledhill's 25-year cylinder guarantee.
- 25-year cylinder guarantee
- Duplex stainless steel construction
- High-flow mains-pressure performance, no cold-water storage tank required
- ErP energy rating C
- Large-surface coil optimised for ASHP/GSHP low-flow temperatures; internal expansion vessel
Specification
| Capacity | 300 litres |
|---|---|
| Primary heating | Heat pump (ASHP or GSHP) via large-surface coil |
| Backup heating | a 3kW backup immersion heater |
| Total immersion load | 3 kW |
| Dimensions (H x diameter) | 1990 x 550 mm |
| ErP energy rating | C |
| Weight (empty / full) | 47 kg / 334 kg |
| Operating pressure | 3 bar |
| Expansion vessel | Internal (supplied with cylinder) |
| Construction | Duplex stainless steel |
| Guarantee | 25 years (cylinder) |
What's included?
Internal expansion vessel, combination inlet group (PRV, strainer, check valve, expansion relief valve), temperature and pressure relief valve, and tundish.
G3 qualified installation is a legal requirement for unvented hot water storage under Building Regulations Part G.
| MPN | PLUHP300 |
|---|---|
| Product Code | EDDPLUHP300 |
| Height (mm) | 1990 |
| Width (mm) | 550 |
| Depth (mm) | 550 |
| Capacity | 300 |
| Power (Watts) | 3000 |
| Heater Type | Heat Pump Hot Water Cylinder |
| Warranty (years) | 2 |
| Energy Performance Rating | C |
| Empty Weight | 47 |
| Full Weight (kG) | 334 |
Delivery Information -
Standard delivery for all orders over £150 ex-VAT are free of charge.
If we can speed this up, we will, but you can also select Express Delivery when you check out and get your purchase more quickly (usually the next working day, subject to a 1pm cut-off): there is an extra charge for this ranging from £5 to £29.99 depending on the products you are buying.
We partner with several of the best UK carriers (such as TNT, Royal Mail, DPD etc) depending on the type of product and the warehouse it is coming from, and also with some pallet companies for larger items. All of these operate during normal Monday – Friday working hours, and we expect all deliveries to arrive in 5 days. For more details checkout this page.
Gledhill Cylinders – Delivery Charge -
For all Gledhill Cylinders, a flat delivery charge of £33.00 (ex-VAT) applies, regardless of order value or delivery method. This will be added automatically at checkout.
Returns Information -
Having to return a product because it doesn’t fit, or is not what you wanted, is really annoying! To try and make sure this isn’t necessary we have lots of helpful advice on our site, and you should feel free to call our experts on the number above to check if you are in any doubt at all – we’re always happy to help.
But if you do, don’t worry, just contact us and we’ll get it sorted (note that for trade customers there may be a restocking fee). If you need it, we can usually arrange the carrier to pick it up.
For full details of our policy, check out the small print here.
