Kingspan 25415 Tribune XE Immersion | Genuine Replacement Spare Part
- SKU
- EDDKINGSPAN02

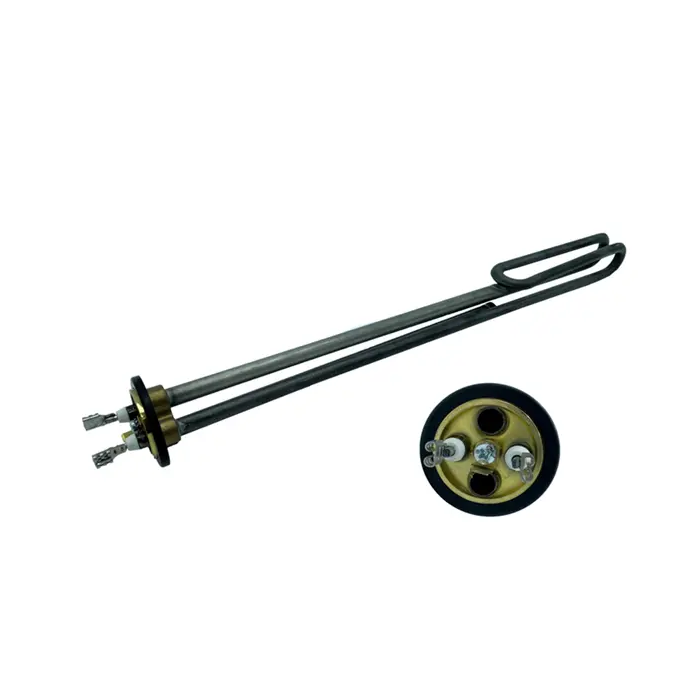

Genuine Kingspan 25415 Tribune XE 3kW Immersion Heater
Genuine Kingspan 25415 tribune xe 3kw immersion heater for Range Tribune cylinders. Kingspan Range Tribune XE unvented hot water cylinders built before 2020, which take the circular-head immersion heater; check the head on the old element before ordering, as the post-2020 cylinder takes a hexagonal-head element instead.
What it does
The immersion heater is the electric element that heats the stored water, either as the only heat source on a direct cylinder or as the back-up on an indirect one. On the Tribune XE it also carries the two thermostat pockets, so the thermostats sense the water through it. Replacing one means isolating the supply and draining the cylinder to below the immersion boss, then refitting the thermostat bulbs into the correct pockets afterwards.
Where it fits
Kingspan Range Tribune XE unvented hot water cylinders built before 2020, which take the circular-head immersion heater; check the head on the old element before ordering, as the post-2020 cylinder takes a hexagonal-head element instead.
Specification
- Kingspan / Range spare part number 25415
- Circular immersion head, the pre-2020 Tribune XE pattern
- 3kW
- 240V supply
- Carries the upper and lower thermostat pockets
- Supply fused at 13A through a double pole isolating switch to BS 60335
Installation
G3 qualified installation required (Building Regulations Part G); isolate the electrical supply and drain the cylinder below the immersion boss before removing an element.
| MPN | 25415 |
|---|---|
| Product Code | EDDKINGSPAN02 |
| Compatible With: Product Code (SKU) | Kingspan Range Tribune XE unvented hot water cylinders built before 2020, which take the circular-head immersion heater; check the head on the old element before ordering, as the post-2020 cylinder takes a hexagonal-head element instead. |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Kingspan |
