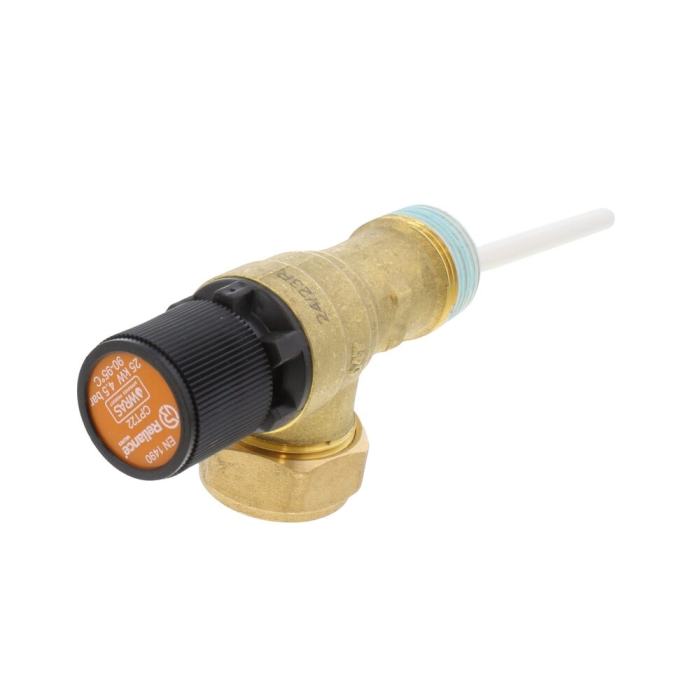

Reliance PTEM585200 4.5 Bar T&P Relief Valve 22mm x 3/4" (CPT22) | Genuine Replacement Spare Part
- SKU
- EDDRELIANCE81
Genuine Reliance PTEM585200 4.5 Bar CPT22 T&P Relief Valve 3/4" x 22mm
CPT22 valve set and locked at 4.5 bar, with a 95mm standard probe, 3/4 inch BSP male inlet and 22mm compression outlet.
What it does
A temperature and pressure relief valve is the last line of protection on an unvented cylinder. It sits in the upper part of the cylinder, where the water is hottest. If the temperature controls fail and the water passes its set temperature, or the pressure rises past the set pressure, the valve lifts and discharges to the tundish.
Where it fits
Unvented hot water storage cylinders and water heaters - the temperature and pressure relief valve that discharges if the stored water exceeds its set temperature or pressure.
Specification
- Range CPT22, standard probe
- Pressure setting 4.5 bar (set and locked)
- Temperature relief 90 to 95 C
- Probe length 95mm
- Connections 3/4" MBSP x 22mm
- Discharge rating 25 kW
- Pressure relief tolerance +/-5%
- Twist top cartridge for servicing
- Certified to BS EN 1490
- WRAS approved
Installation
G3 qualified installation required (Building Regulations Part G, unvented hot water storage). A genuine Reliance part for a reliable, like-for-like replacement. In stock at Electrical Deals Direct.
| MPN | PTEM585200 |
|---|---|
| Product Code | EDDRELIANCE81 |
| Compatible With: Product Code (SKU) | Unvented hot water storage cylinders and water heaters; the temperature and pressure relief valve that discharges if the stored water exceeds its set temperature or pressure |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Reliance |
| Empty Weight (kG) | 0.5 |
| Full Weight (kG) | 0.5 |
