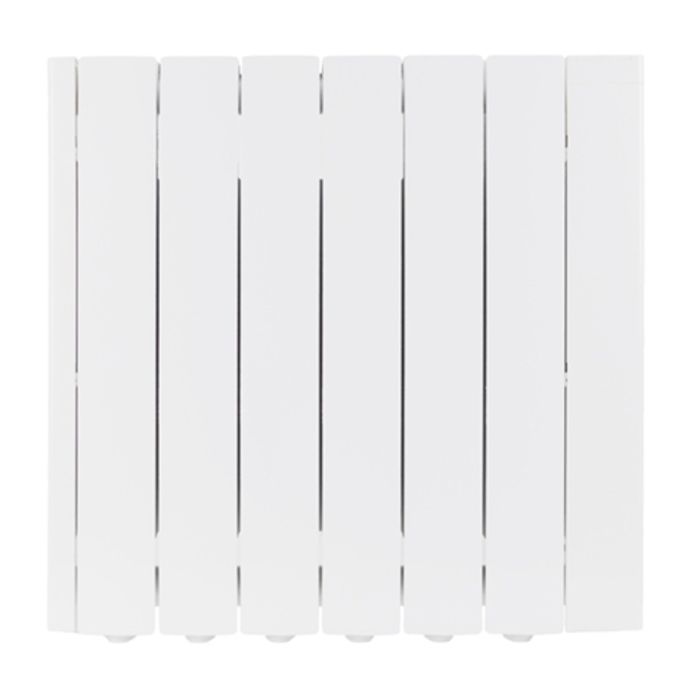

ThermoSphere V2 1300W Oil Filled Electric Radiator TSR-1300-A
- SKU
- EDDTSR1300A
Our Expert's Opinion
"Suits a larger bedroom or small lounge of around 13m². Step up a size if the room has big windows or high ceilings."ThermoSphere V2 1300W Oil Filled Electric Radiator
Where there is no gas, or a wet system is not worth extending, a wall-mounted oil filled radiator is one of the simplest ways to heat a room properly. The ThermoSphere V2 1300W (code TSR-1300-A) heats a well-insulated room of up to 13m², runs on a standard 230V supply, and draws just 5.7A.
Why oil filled rather than a panel heater
The element heats a sealed thermal fluid inside die-cast aluminium fins. That fluid holds its heat, so the radiator keeps giving out gentle, even warmth after the element switches off, rather than cycling hot and cold like a basic convector. Combined with an accurate electronic thermostat, that means fewer swings in room temperature and less wasted energy.
Controls built in
Everything is on the unit, under a hinged cover on the right-hand side — no separate programmer to fit. You get an LCD electronic thermostat (5°C to 30°C), a 7-day programme in 30-minute steps, open window detection that cuts the heat when the temperature drops sharply, adaptive pre-heat so the room is up to temperature at the time you set, a boost timer, frost protection, and an energy monitor showing recent use in kWh.
Sizing and installation
The V2 range runs from 500W to 2000W, all 590mm high and 95mm deep, so a run of rooms can be fitted at a matching height. This 1300W model is 745mm wide with 8 fins and weighs 16.9kg. Rooms with poor insulation, large windows, or high ceilings need more output than the area alone suggests — step up a size if in doubt. It is supplied with a 1.5m white cable for a hard-wired connection, which should be made by a qualified electrician.
Need help sizing a whole property? Call our team on 01934 253600 with the room sizes and we will put the list together.
Specification
| Product code | TSR-1300-A |
| Output | 1300W (4,436 BTU/h) |
| Current | 5.7A |
| Max room area | 13m² (well insulated) |
| Voltage | 230V AC 50Hz |
| Dimensions (W x H x D) | 745 x 590 x 95mm |
| Fins | 8 |
| Weight | 16.9kg |
| Construction | Die-cast aluminium, thermal fluid filled |
| Colour | White |
| Controls | LCD electronic thermostat, 7-day programmer, open window detection, adaptive start |
| Protection | Class I, IP20 |
| Connection | Hard wired, 1.5m white cable |
| Country of origin | Spain |
| Warranty | 5 years |
| EAN | 5056257308555 |
| MPN | TSR-1300-A |
|---|---|
| Product Code | EDDTSR1300A |
| Height (mm) | 590 |
| Width (mm) | 745 |
| Depth (mm) | 95 |
| Brand | ThermoSphere |
| Power (Watts) | 1300 |
| Warranty (years) | 5 |
