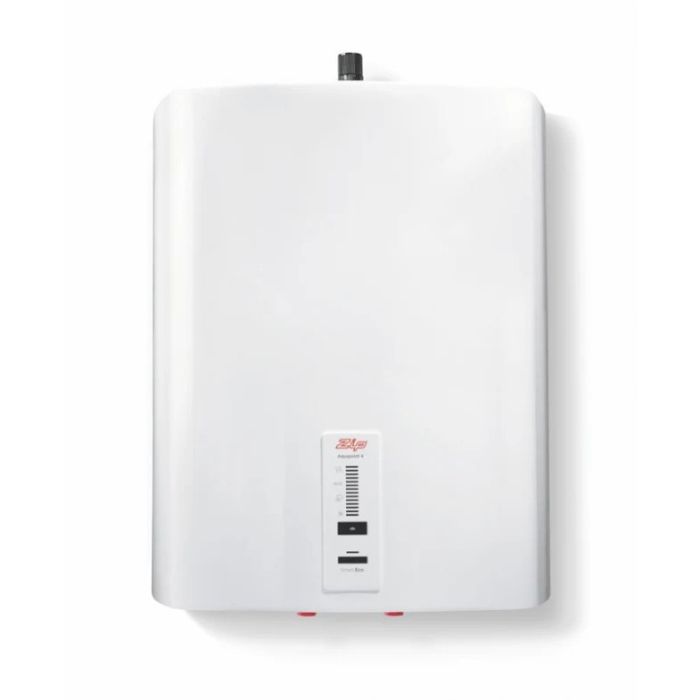

Zip Aquapoint IV AP4/50S Unvented Water Heater AP450S 2kW



- SKU
- EDDZIPW12
Our Expert's Opinion
"The Aquapoint range is highly rated by the trade."Zip Aquapoint IV AP4/50S 50 Litre Unvented Water Heater
The Zip Aquapoint IV is a wall-mounted unvented water heater. It connects straight to the cold mains and can serve one or more hot taps at mains pressure. This 50 litre model (AP450S) is heated by a 2kW element and runs from a 13 amp supply, for homes and commercial sites alike.
SmartEco control
The electronic controller sets the water anywhere from 10°C to 75°C, with an eco setting of about 57°C that Zip recommends for the lowest heat loss and limescale. In SmartEco mode it records your hot water use for 7 days, then heats around that pattern to use less electricity. It also has an anti-legionella function and a 10°C frost protection setting.
Built to last
The inner tank is glass-lined steel tested to 13 bar, protected against corrosion by a magnesium anode and insulated with high-performance polyurethane foam. A manually resettable safety cut-out switches off the element if a fault occurs.
Specification
| Zip product code | AP450S |
|---|---|
| Nominal capacity | 50 litres |
| Storage volume | 49.1 litres |
| Mixed water at 40°C (V40) | 68 litres |
| Power | 2.0kW at 230V |
| Electrical supply | 13 amp |
| Heat up, 10°C to 65°C | 1 hour 38 minutes |
| Temperature range | 10°C to 75°C |
| Dimensions (W x D x H) | 420 x 445 x 690mm |
| Weight empty / full | 24kg / 74kg |
| Water connections | 1/2in BSP |
| Minimum water pressure | 1 bar |
| Maximum working pressure | 6 bar |
| Mounting | Wall, vertical only |
| IP rating | IP24 |
| ErP energy class | B (load profile M) |
| Approvals | WRAS, CE, UKCA |
| Warranty | 1 year on-site parts and labour |
What's included?
Zip's AQ105 install kit: a cold inlet assembly (pressure reducing valve with integral line strainer, expansion relief valve with check valve, expansion vessel take-off and balanced cold take-off), an expansion vessel with wall fixing bracket, a wall locating bracket and a tundish.
Installation
This is an unvented water heater, so it must be installed by a G3 qualified installer (Building Regulations Part G). Zip advises regular servicing, including a check of the anode, to keep the heater at its best.
Compare the full Zip Aquapoint IV range.
| MPN | AP450S |
|---|---|
| Product Code | EDDZIPW12 |
| Height (mm) | 690 |
| Width (mm) | 420 |
| Depth (mm) | 445 |
| Capacity | 50 |
| Power (Watts) | 2000 |
| Recovery Time (mins) | 98 |
| Heater Type | Small/POU Water Heater |
| Warranty (years) | 1 |
| Energy Performance Rating | B |
| Empty Weight (kG) | 24 |
| Full Weight (kG) | 74 |
| Brand | Zip |
