Alpha 1.028561 Safety Relief Valve | Genuine Replacement Spare Part
- SKU
- EDDALPHA03
Need something else?

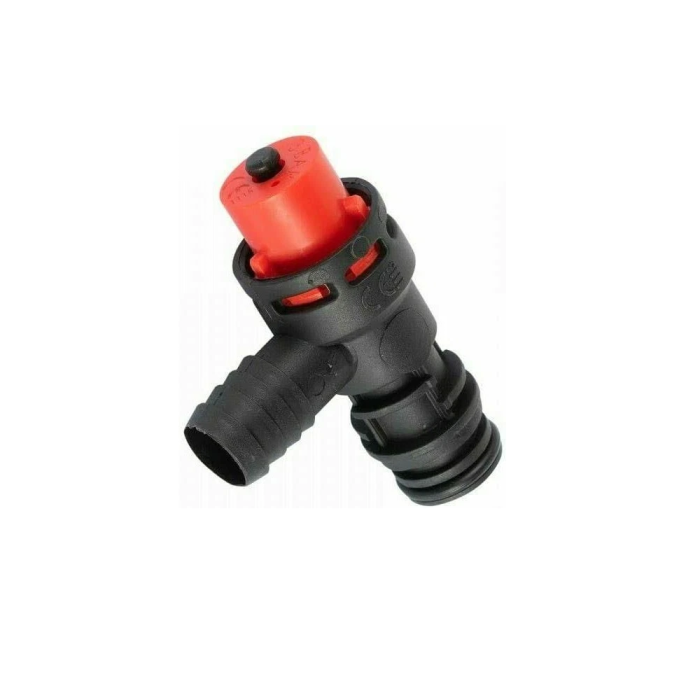

Can’t find what you’re looking for? Click here to use our spare part finder.Genuine Alpha 1.028561 3 Bar Safety Relief Valve
Genuine Alpha 1.028561 3 bar safety relief valve for Alpha E-Tec, Evoke, Eco 2 and InTec 2 gas boilers.
What it does
The safety relief valve protects the sealed heating circuit. If system pressure rises past 3 bar it opens and discharges water to the outside discharge pipe, protecting the boiler, pipework and radiators.
Signs it needs replacing
A valve that drips or discharges at normal pressure, or a system that keeps losing pressure with no visible leak, often points to a failed relief valve. Check the expansion vessel charge too, as a flat vessel can make a healthy valve lift.
Where it fits
Alpha Eco 2 & Eco 2 Plus; E-Tec 20S, 28, 30S & 33; E-Tec Plus 28 & 33; Evoke 28 & 33; InTec 2 20SE, 25X, 25XE, 26CE, 28X, 28XE, 30CE, 30SE & 35CE.
GC numbers: Eco 2 28kW 47-532-60, Eco 2 Plus 47-532-63, E-Tec 28 47-532-69, InTec 2 20SE 41-532-28, 25X 47-532-61, 25XE 47-532-64, 26CE 47-532-66, 28X 47-532-62, 28XE 47-532-65, 30CE 47-532-67, 30SE 41-532-29, 35CE 47-532-68.
Specification
- Alpha part number 1.028561
- Set pressure 3 bar
- Safety relief valve
Installation
Gas Safe registered engineer required. Isolate the gas and electrical supplies before any work. In stock at Electrical Deals Direct.
| MPN | 1.028561 |
|---|---|
| Product Code | EDDALPHA03 |
| Compatible With: Product Code (SKU) | Alpha Eco 2 & Eco 2 Plus; E-Tec 20S, 28, 30S & 33; E-Tec Plus 28 & 33; Evoke 28 & 33; InTec 2 20SE, 25X, 25XE, 26CE, 28X, 28XE, 30CE, 30SE & 35CE. |
| Part Origin | Genuine |
| Part or Accessory? | Part |
| Brand | Alpha |
| Empty Weight (kG) | 0.5 |
| Full Weight (kG) | 0.5 |
