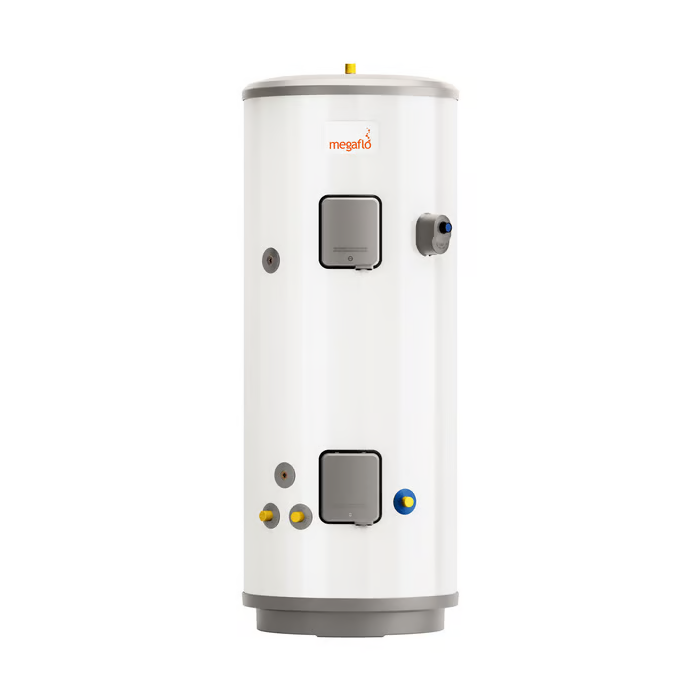

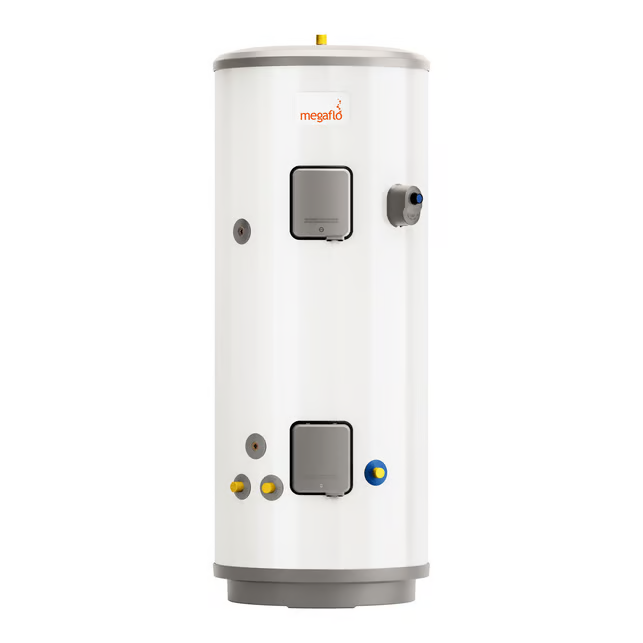

Heatrae Sadia Megaflo Essential 210 Litre Air Source Heat Pump Unvented Cylinder 7912274
- SKU
- EDDSADIA328
Our Expert's Opinion
"Built for heat pumps, with a large coil, twin immersions and a secondary return. Unlike the rest of the Essential range it uses a supplied external expansion vessel, so allow wall space for it."Heatrae Sadia Megaflo Essential 210 Litre Air Source Heat Pump Unvented Cylinder
The Megaflo Essential ASHP cylinder is designed for residential air source heat pumps, including Baxi models. This 210 litre model stores 209 litres of mains-pressure hot water in a duplex stainless steel tank with 60mm of polyurethane foam insulation, and has two 3kW immersion heaters for boost.
Why a heat pump cylinder?
A heat pump runs at lower flow temperatures than a boiler, so it needs a much larger coil to heat the water in a sensible time. This cylinder's coil has a surface area of 2 m², against 0.51 m² on the Megaflo Essential Indirect. It also has a secondary return connection for a hot water loop.
Specification
| Heatrae Sadia product code | 7912274 |
|---|---|
| Nominal capacity | 210 litres |
| Stored volume | 209 litres |
| Height | 1516mm |
| Diameter | 579mm |
| Empty weight | 46kg |
| Full weight | 255kg |
| ErP energy class | B |
| Standing heat loss | 1.50 kWh per 24 hours |
| Hot water above 40°C | 204 litres |
| Coil surface area | 2 m² |
| Primary coil pressure drop | 0.09 bar |
| Immersion heaters | 2 x 3kW |
| Expansion vessel | 18 litres, supplied |
| Insulation | 60mm polyurethane foam |
| Connections | 22mm to 3/4in BSP male: flow, return, cold inlet and hot outlet |
| Secondary return | Yes |
| Warranty | 10 years on the stainless steel inner tank |
KIWA approved, and complies with Water Regulation 4 and Building Regulations G3.
What's included?
Megaflo lists an 18 litre expansion vessel as supplied with this cylinder. Megaflo has not yet published a full kit list for the Essential range, so call 01934 253600 if you need to confirm what comes in the box.
Installation
This is an unvented cylinder, so it must be fitted by a G3 qualified installer (Building Regulations Part G). The immersion heaters should be wired by a qualified electrician.
Compare the full range of Megaflo cylinders.
| MPN | 7912274 |
|---|---|
| Product Code | EDDSADIA328 |
| Height (mm) | 1516 |
| Width (mm) | 579 |
| Depth (mm) | 579 |
| Capacity | 210 |
| Power (Watts) | 6000 |
| Heater Type | Heat Pump Hot Water Cylinder |
| Energy Performance Rating | B |
| Empty Weight (kG) | 46 |
| Full Weight (kG) | 255 |
| Brand | Heatrae Sadia |
