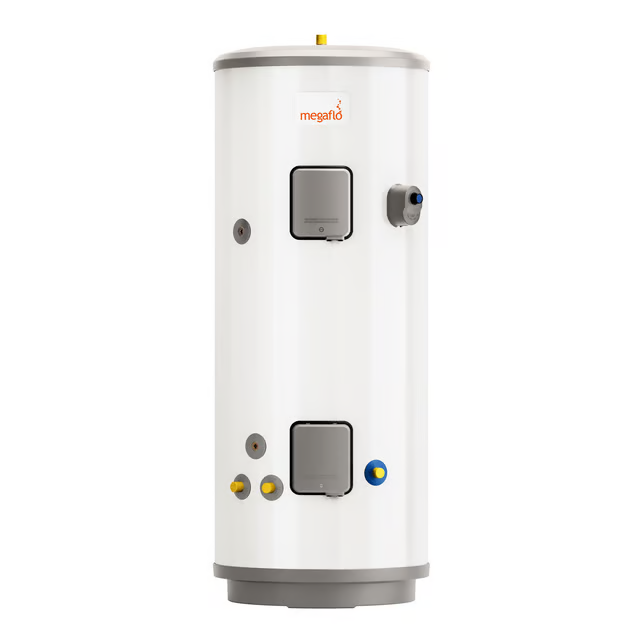

Heatrae Sadia Megaflo Essential 250 Litre Air Source Heat Pump Unvented Cylinder 7912275
- SKU
- EDDSADIA329
Our Expert's Opinion
"Built for heat pumps, with a large coil, twin immersions and a secondary return. Unlike the rest of the Essential range it uses a supplied external expansion vessel, so allow wall space for it."Heatrae Sadia Megaflo Essential 250 Litre Air Source Heat Pump Unvented Cylinder
The Megaflo Essential ASHP cylinder is designed for residential air source heat pumps, including Baxi models. This 250 litre model stores 246 litres of mains-pressure hot water in a duplex stainless steel tank with 60mm of polyurethane foam insulation, and has two 3kW immersion heaters for boost.
Why a heat pump cylinder?
A heat pump runs at lower flow temperatures than a boiler, so it needs a much larger coil to heat the water in a sensible time. This cylinder's coil has a surface area of 3 m², against 0.51 m² on the Megaflo Essential Indirect. It also has a secondary return connection for a hot water loop.
Specification
| Heatrae Sadia product code | 7912275 |
|---|---|
| Nominal capacity | 250 litres |
| Stored volume | 246 litres |
| Height | 1767mm |
| Diameter | 579mm |
| Empty weight | 54kg |
| Full weight | 300kg |
| ErP energy class | C |
| Standing heat loss | 1.78 kWh per 24 hours |
| Hot water above 40°C | 242 litres |
| Coil surface area | 3 m² |
| Primary coil pressure drop | 0.12 bar |
| Immersion heaters | 2 x 3kW |
| Expansion vessel | 24 litres, supplied |
| Insulation | 60mm polyurethane foam |
| Connections | 22mm to 3/4in BSP male: flow, return, cold inlet and hot outlet |
| Secondary return | Yes |
| Warranty | 10 years on the stainless steel inner tank |
KIWA approved, and complies with Water Regulation 4 and Building Regulations G3.
What's included?
Megaflo lists a 24 litre expansion vessel as supplied with this cylinder. Megaflo has not yet published a full kit list for the Essential range, so call 01934 253600 if you need to confirm what comes in the box.
Installation
This is an unvented cylinder, so it must be fitted by a G3 qualified installer (Building Regulations Part G). The immersion heaters should be wired by a qualified electrician.
Compare the full range of Megaflo cylinders.
| MPN | 7912275 |
|---|---|
| Product Code | EDDSADIA329 |
| Height (mm) | 1767 |
| Width (mm) | 579 |
| Depth (mm) | 579 |
| Capacity | 250 |
| Power (Watts) | 6000 |
| Heater Type | Heat Pump Hot Water Cylinder |
| Energy Performance Rating | C |
| Empty Weight (kG) | 54 |
| Full Weight (kG) | 300 |
| Brand | Heatrae Sadia |
Delivery Information -
Standard delivery for all orders over £150 ex-VAT are free of charge.
If we can speed this up, we will, but you can also select Express Delivery when you check out and get your purchase more quickly (usually the next working day, subject to a 1pm cut-off): there is an extra charge for this ranging from £5 to £29.99 depending on the products you are buying.
We partner with several of the best UK carriers (such as TNT, Royal Mail, DPD etc) depending on the type of product and the warehouse it is coming from, and also with some pallet companies for larger items. All of these operate during normal Monday – Friday working hours, and we expect all deliveries to arrive in 5 days. For more details checkout this page.
Gledhill Cylinders – Delivery Charge -
For all Gledhill Cylinders, a flat delivery charge of £33.00 (ex-VAT) applies, regardless of order value or delivery method. This will be added automatically at checkout.
Returns Information -
Having to return a product because it doesn’t fit, or is not what you wanted, is really annoying! To try and make sure this isn’t necessary we have lots of helpful advice on our site, and you should feel free to call our experts on the number above to check if you are in any doubt at all – we’re always happy to help.
But if you do, don’t worry, just contact us and we’ll get it sorted (note that for trade customers there may be a restocking fee). If you need it, we can usually arrange the carrier to pick it up.
For full details of our policy, check out the small print here.

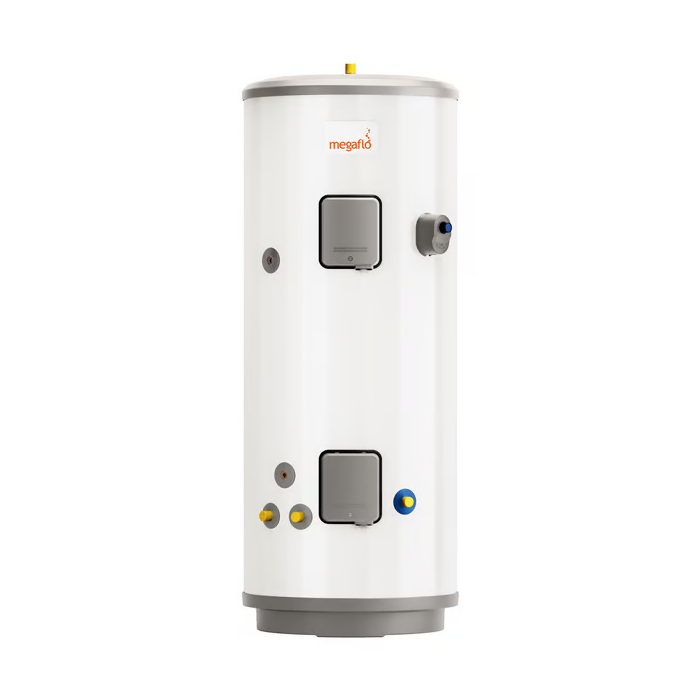

Heatrae Sadia Megaflo Essential 250 Litre Air Source Heat Pump Unvented Cylinder
The Megaflo Essential ASHP cylinder is designed for residential air source heat pumps, including Baxi models. This 250 litre model stores 246 litres of mains-pressure hot water in a duplex stainless steel tank with 60mm of polyurethane foam insulation, and has two 3kW immersion heaters for boost.
Why a heat pump cylinder?
A heat pump runs at lower flow temperatures than a boiler, so it needs a much larger coil to heat the water in a sensible time. This cylinder's coil has a surface area of 3 m², against 0.51 m² on the Megaflo Essential Indirect. It also has a secondary return connection for a hot water loop.
Specification
| Heatrae Sadia product code | 7912275 |
|---|---|
| Nominal capacity | 250 litres |
| Stored volume | 246 litres |
| Height | 1767mm |
| Diameter | 579mm |
| Empty weight | 54kg |
| Full weight | 300kg |
| ErP energy class | C |
| Standing heat loss | 1.78 kWh per 24 hours |
| Hot water above 40°C | 242 litres |
| Coil surface area | 3 m² |
| Primary coil pressure drop | 0.12 bar |
| Immersion heaters | 2 x 3kW |
| Expansion vessel | 24 litres, supplied |
| Insulation | 60mm polyurethane foam |
| Connections | 22mm to 3/4in BSP male: flow, return, cold inlet and hot outlet |
| Secondary return | Yes |
| Warranty | 10 years on the stainless steel inner tank |
KIWA approved, and complies with Water Regulation 4 and Building Regulations G3.
What's included?
Megaflo lists a 24 litre expansion vessel as supplied with this cylinder. Megaflo has not yet published a full kit list for the Essential range, so call 01934 253600 if you need to confirm what comes in the box.
Installation
This is an unvented cylinder, so it must be fitted by a G3 qualified installer (Building Regulations Part G). The immersion heaters should be wired by a qualified electrician.
Compare the full range of Megaflo cylinders.
| MPN | 7912275 |
|---|---|
| Product Code | EDDSADIA329 |
| Height (mm) | 1767 |
| Width (mm) | 579 |
| Depth (mm) | 579 |
| Capacity | 250 |
| Power (Watts) | 6000 |
| Heater Type | Heat Pump Hot Water Cylinder |
| Energy Performance Rating | C |
| Empty Weight (kG) | 54 |
| Full Weight (kG) | 300 |
| Brand | Heatrae Sadia |
Delivery Information -
Standard delivery for all orders over £150 ex-VAT are free of charge.
If we can speed this up, we will, but you can also select Express Delivery when you check out and get your purchase more quickly (usually the next working day, subject to a 1pm cut-off): there is an extra charge for this ranging from £5 to £29.99 depending on the products you are buying.
We partner with several of the best UK carriers (such as TNT, Royal Mail, DPD etc) depending on the type of product and the warehouse it is coming from, and also with some pallet companies for larger items. All of these operate during normal Monday – Friday working hours, and we expect all deliveries to arrive in 5 days. For more details checkout this page.
Gledhill Cylinders – Delivery Charge -
For all Gledhill Cylinders, a flat delivery charge of £33.00 (ex-VAT) applies, regardless of order value or delivery method. This will be added automatically at checkout.
Returns Information -
Having to return a product because it doesn’t fit, or is not what you wanted, is really annoying! To try and make sure this isn’t necessary we have lots of helpful advice on our site, and you should feel free to call our experts on the number above to check if you are in any doubt at all – we’re always happy to help.
But if you do, don’t worry, just contact us and we’ll get it sorted (note that for trade customers there may be a restocking fee). If you need it, we can usually arrange the carrier to pick it up.
For full details of our policy, check out the small print here.
- Product Image
- Product Name
- Product SKU
- Product Price
- Product URL
- MPN
- Product Code
- Height (mm)
- Width (mm)
- Depth (mm)
- Power (Watts)
- Warranty (years)
- Capacity
- Recovery Time
- Heater Type
- Venting
- Energy Performance Rating
- Heatrae Sadia Megaflo Essential 250 Litre Air Source Heat Pump Unvented Cylinder 7912275
- EDDSADIA329
- £1,170.62
- https://electricaldealsdirect.co.uk/heatrae-sadia-megaflo-essential-250-litre-air-source-heat-pump-unvented-cylinder.html
- 7912275
- EDDSADIA329
- 1767
- 579
- 579
- 6000
- -
- 250
- -
- Heat Pump Hot Water Cylinder
- Unvented
- C

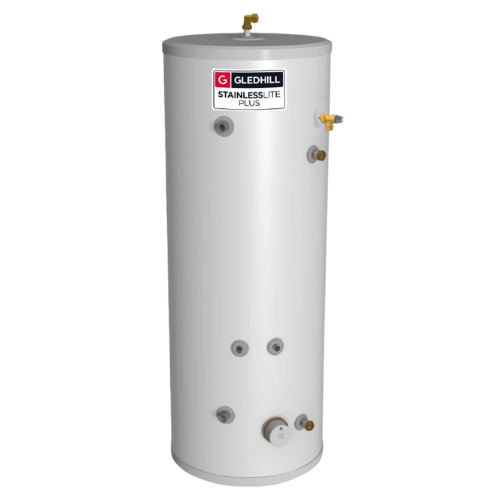

- Gledhill StainlessLite Plus Heat Pump 250L Unvented Cylinder PLUHP250
